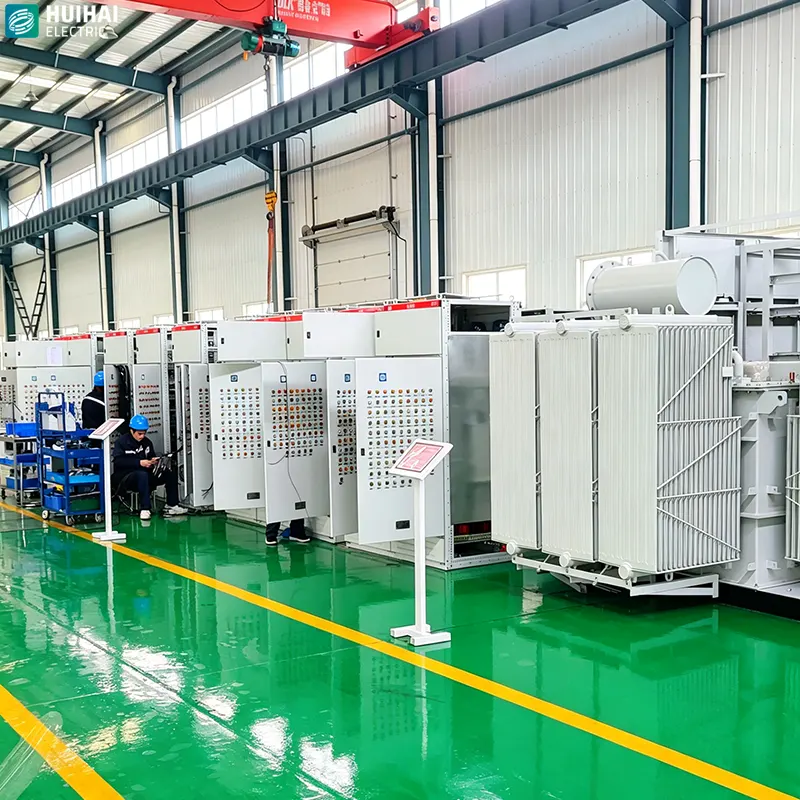

Photovoltaic Power Generation Box-type Substation

Product Overview

ZS-ZG series combined transformer is to install transformer, load switch and high voltage fuse in transformer box, and use insulating oil of the transformer as insulation and cooling medium. It is divided into two types: double winding and axial splitting. The axial splitting high voltage is wound by axial section, and the low voltage is wound by copper foil. The two branches of the low voltage can run independently, simultaneously and in parallel.

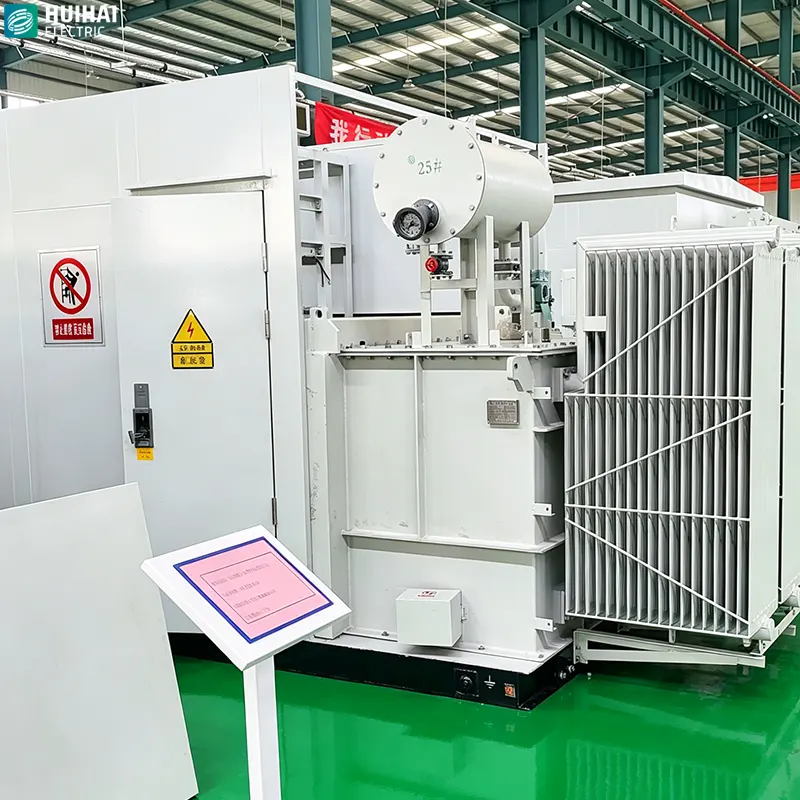

Functional photovoltaic power generation combined box substation is an outdoor complete substation which is manufactured and assembled in the factory in advance, with boosting transformer, high-voltage vacuum load switch-fuse combination electrical appliance, low-voltage switch gear, internal wiring (cable, bus bar, etc.), power transformer and other auxiliary equipment arranged in a common housing and passing the type test.

Product Characteristics

• It uses insulating oil as the insulation and heat dissipation medium of the whole product, and the oil tank adopts a fully sealed structure, which has the characteristics of small size and light weight.
• Strong complete set, easy installation, short construction period and low operation cost.
• High structural strength, strong anti-corrosion performance, good environmental protection and energy saving, completely suitable for beaches, grasslands, deserts and other environments with harsh natural conditions.
