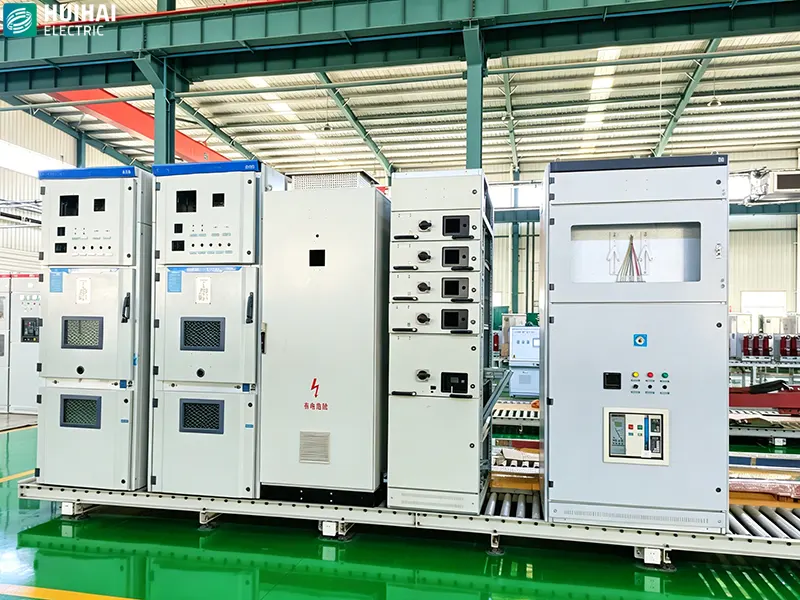

KYN28-24(Z) Armored Removable AC Metal Enclosed Switchgear

Rated Frequency

50HZ

Rated Voltage(kV)

Overall dimensions(mm)

1000×2290×17601000×2090×2290

Description

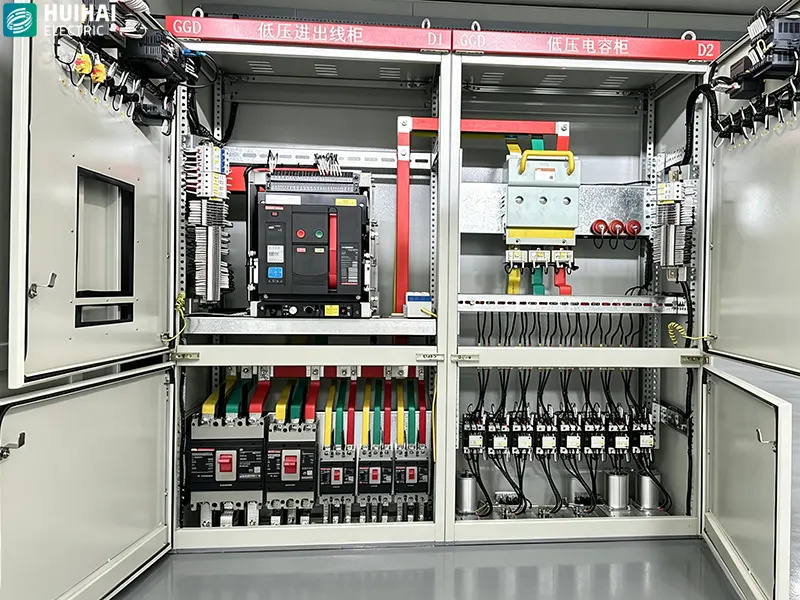

Internal Structure Display of High Voltage Switchgear

Product Overview

KYN (Z) armored removable AC metal enclosed switchgear is a three-phase AC 50Hz indoor switchgear with a rated voltage of 24kV, which is used to receive and distribute electric energy. It is particularly suitable for frequent operation applications.

Product Characteristics

Meeting the requirements of national standard GB3906-2006 and international standard IEC62271-200.
Small size and superior insulation level.
Safe structure, flexible installation, with the protection level of IP4X, and locking function of "five antis".
Various types of handcarts and easy to operate.

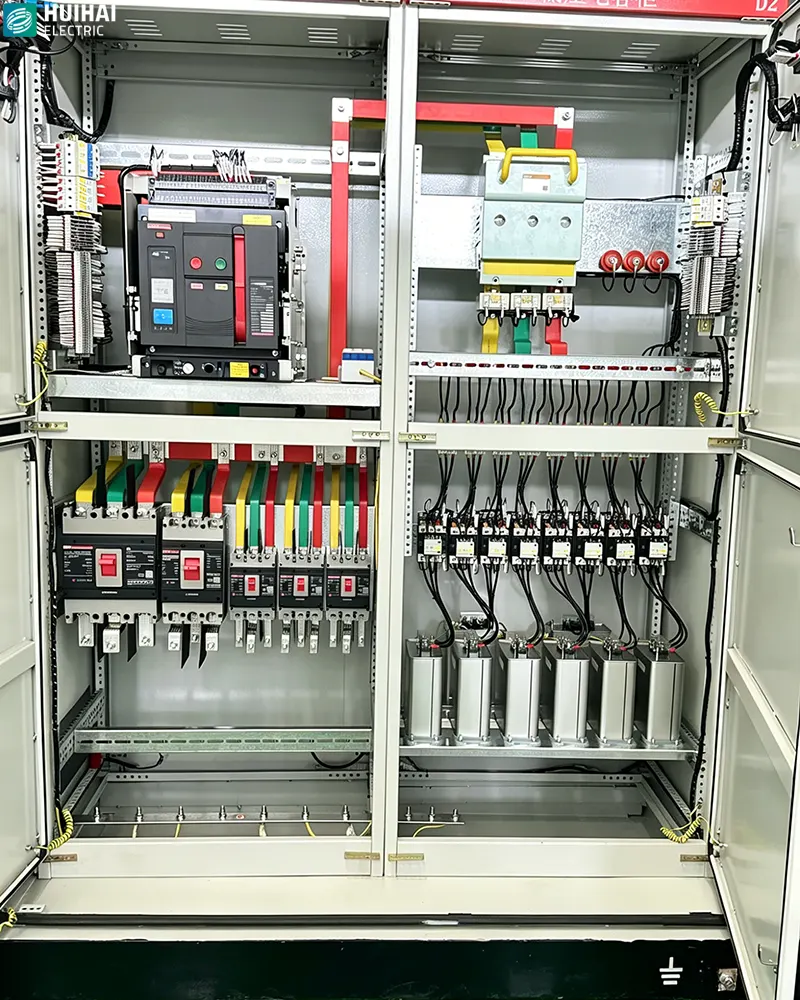

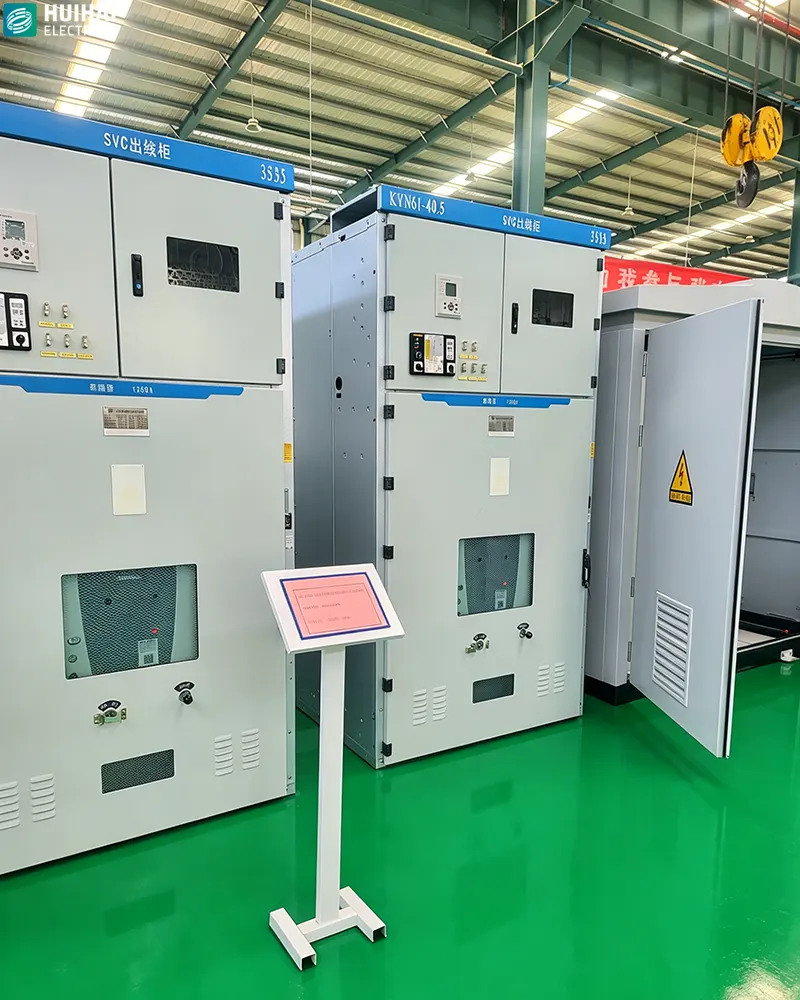

Internal structure of KYN16-40.5 high-voltage switchgear

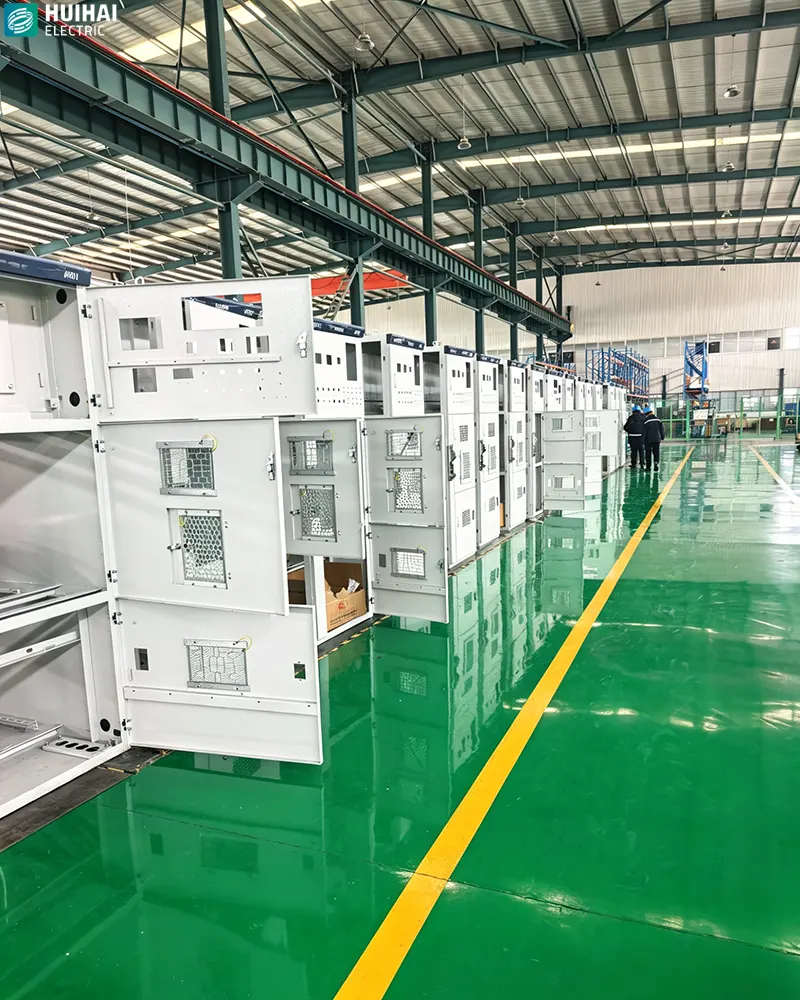

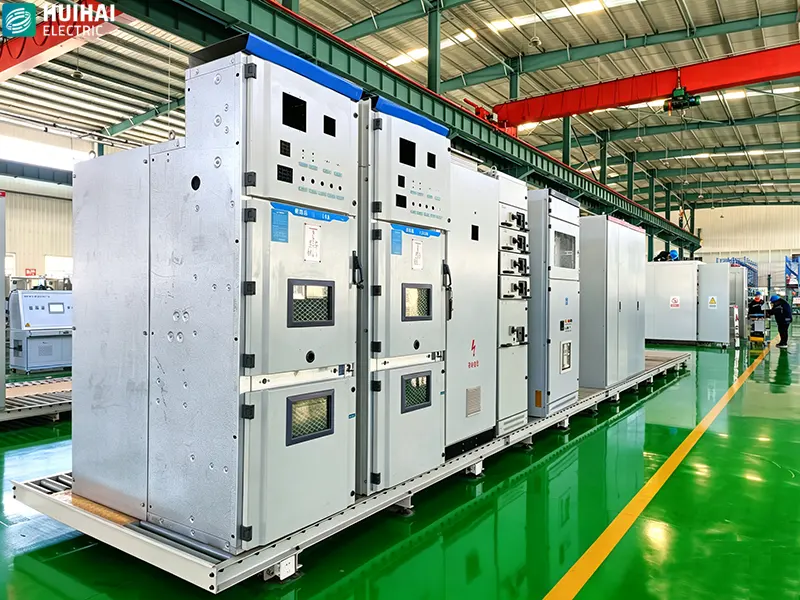

High voltage switchgear processing workshop

Conditions for use

Item		Unit	Parameter
Rated frequency		Hz	50
Rated voltage		kV	24
Rated current		A	630 - 3150
Max. working voltage		kV	Interphase, phase to ground	Isolated fracture
Rated insulation level	Power frequency withstand voltage @ 1 min	kV	65	79
	Lightning impulse withstand voltage		125	145
Rated short-time withstand current		kA	25, 31.5, 40
Rated short circuit making current (peak)		kA	63, 80, 100
Rated peak withstand current		kA	63, 80, 100
Rated short-circuit breaking current		kA	20, 25, 31.5, 40
Rated short-circuit duration		s	4
Protection grade	Housing		IP4X
	Isolation chamber		IP2X
Overall dimensions (width × depth × height)	Cable incoming and outgoing lines	mm	1,000×2,290×1,760
	Overhead incoming and outgoing lines		1000×2090×2290
