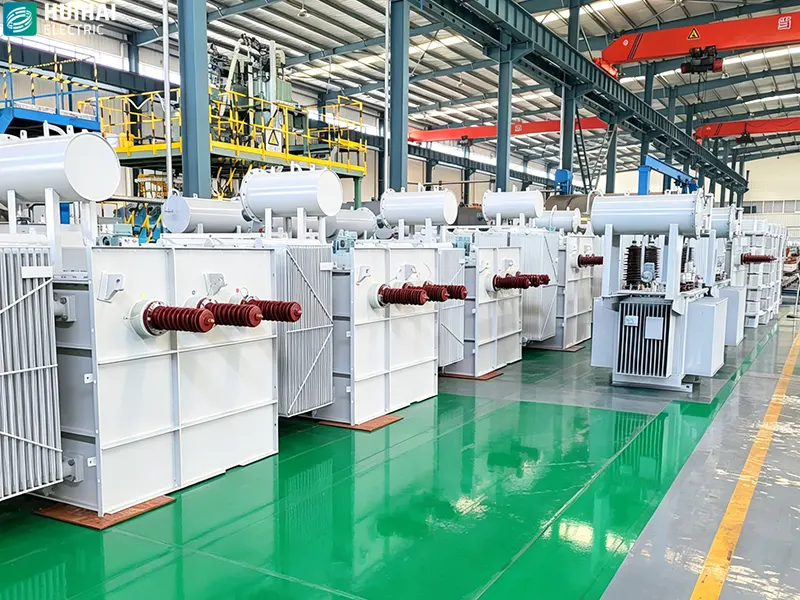

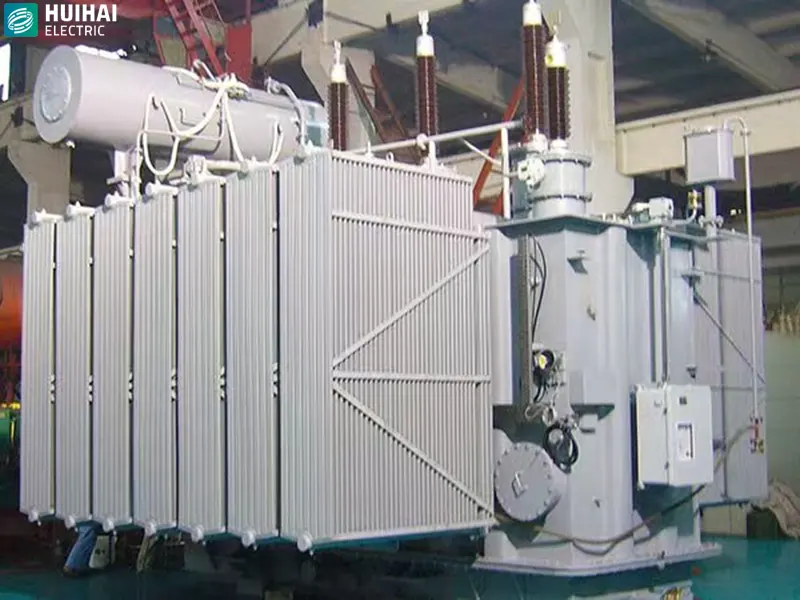

American-Type Box Transformer

American-type box transformer (also known as modular substations) are a type of prefabricated complete substation that integrates high-voltage switches, distribution transformers, and low-voltage distribution equipment. Its core design seals the high-voltage load switches, fuses, and other components along with the transformer core and windings within an oil tank, achieving a compact, integrated layout. This "oil-immersed, fully sealed" structure is its most significant distinguishing feature from European-style prefabricated substations.

Structure and Composition

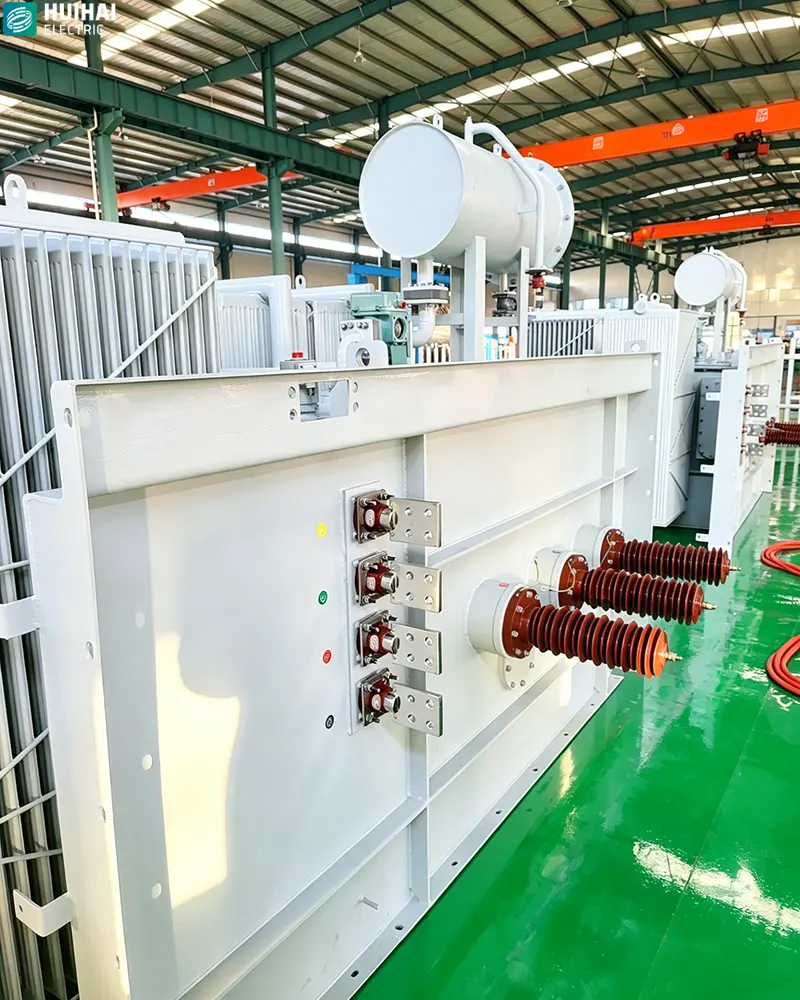

• Front-end operating compartment: Contains high and low voltage terminals, load switch operating handles, no-load tap changer, plug-in fuses, oil level/temperature gauges, and other operating and monitoring components.

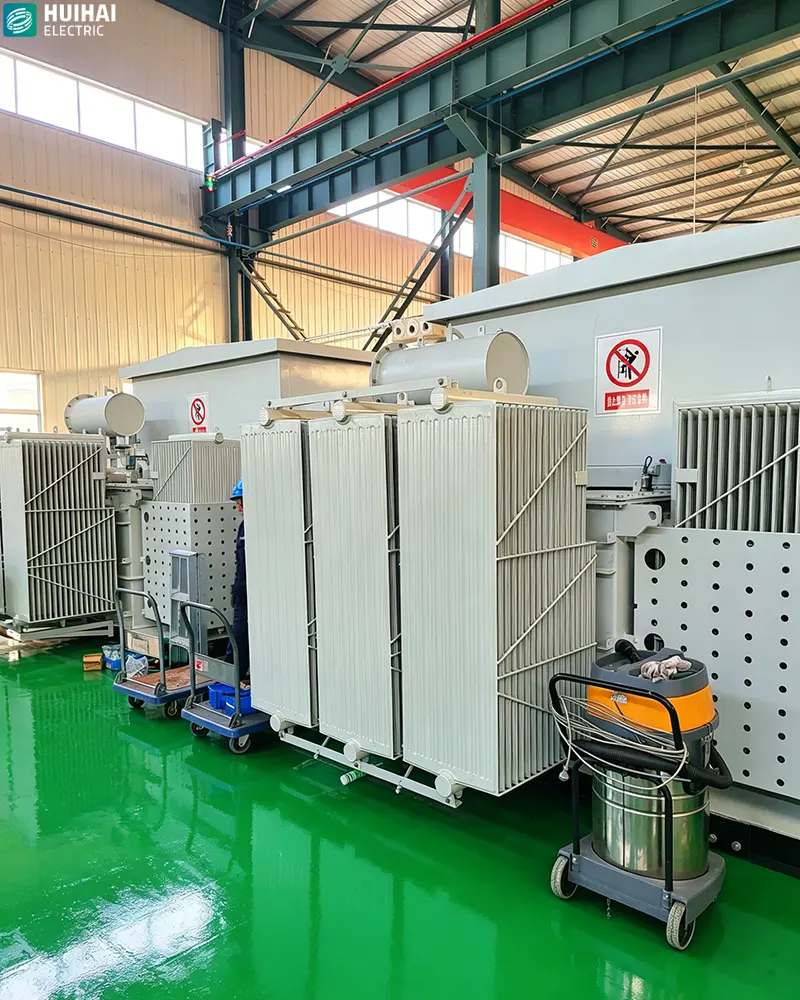

• Rear-end oil tank: The main body of the equipment, filled with transformer oil, completely submerges the transformer windings, core, high-voltage load switch, and fuses. The transformer employs a fully sealed design, eliminating the exposed oil conservator found in traditional transformers. External heat sinks utilize natural air convection for cooling.

Working Principle

The American-style prefabricated substation is a highly integrated power distribution system. Its workflow is clearly divided into three stages: high-voltage reception and protection, voltage transformation, and low-voltage distribution, as follows:

• High-voltage reception and protection: 10kV high-voltage electricity is received through fully insulated, hot-swappable elbow-type cable connectors.
• Voltage transformation: The core components of the transformer achieve voltage reduction from 10kV to 400V.
• Low-voltage distribution: The stepped-down electrical energy enters the low-voltage compartment and is distributed and protected by molded case automatic air circuit breakers.
• Four-level fuse protection: Full-range protection is provided by a series connection of plug-in fuses and backup current-limiting fuses. The plug-in fuses are dual-sensitive fuses with thermistor function, and the backup current-limiting fuses can quickly cut off severe internal faults.
• Non-electrical quantity protection: Equipped with pressure relief valves, oil temperature/level gauges, etc., it promptly sends signals or trips when internal pressure or temperature is abnormal, protecting equipment safety.

Key Features and Advantages

American-type box transformer have very distinct characteristics. Understanding their advantages and disadvantages helps in better equipment selection:

• Highly Compact: Only 1/3 to 1/5 the size of European-style prefabricated substations of the same capacity, requiring little space and easily blending into the environment.
• Safe and Reliable: Fully insulated and sealed structure, with no exposed live parts in the high-voltage section, ensuring operational safety.
• Robust Overload Capacity: Allows for 2 times overload for 2 hours or 1.6 times overload for 7 hours without affecting equipment lifespan.

Main Application Scenarios

Based on its features, American-style prefabricated substations are particularly suitable for the following scenarios:

• Residential Power Supply: Modern residential communities, commercial centers, villa areas, etc.
• Municipal and Transportation: Urban road lighting, voltage boosting and grid connection for wind and solar power generation projects, temporary construction site power supply, etc.
• Specific Environments: Factories, tourist attractions, etc., where there are strict requirements for equipment aesthetics, environmental harmony, or floor space.
