Power Transformer

S13-M Series Transformer

High Voltage(kV)

66.31010.511

Low Voltage(kV)

0.4

Short Circuit Impedance(%)

44.5

Description

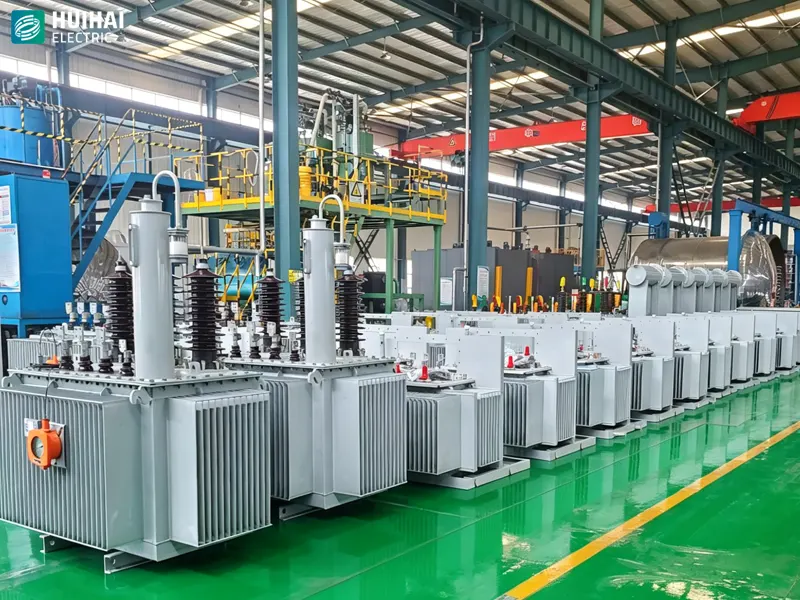

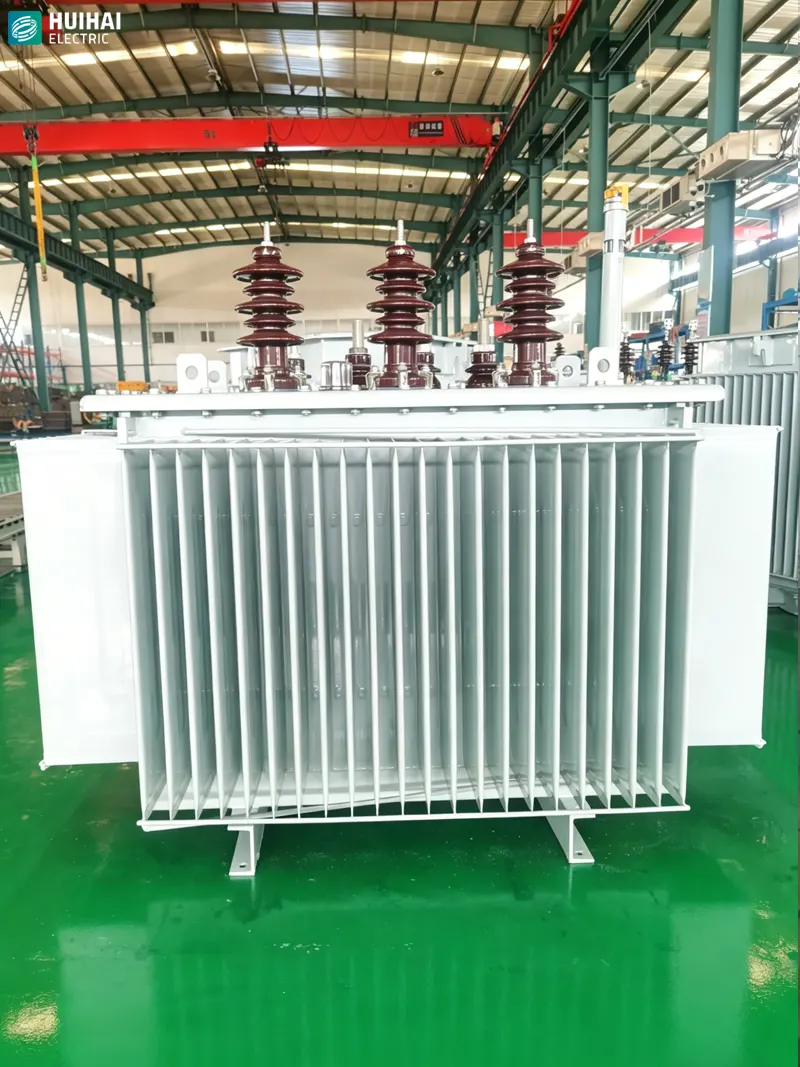

S13-M Series Planar Stacked Core Transformer

Product Overview

Te core 44- of S13-M 10kV distribution transformer is made of 23QG090 high magnetic permeability silicon steel sheet, adopting 45° fully mitered or winding structure, which has good magnetic permeability. The coil adopts cylindrical type and new spiral type, which has high electrical strength; the oil tank is fully sealed and corrugated, with good heat dissipation efect, high insulation condition and reliable operation. Te no-load loss and no-load current are reduced by about 30% respectively on average compared with S9 10kV distribution transformer. It is used outdoors by oil immersion and self-cooling, and is widely used in urban and rural transmission and distribution networks, factories, mines, water conservancy and other places.

Product Characteristics

Adopting new insulation structure, material and process, the performance is reduced by 30% on average compared with S9 series no-load loss, which is a new generation of energy-saving and consumption-reducing product.
High and low voltage windings are all wound with oxygen-free copper wire, and adopt new insulation structure and fasteners, which have strong short-circuit resistance.
The fully sealed oil tank isolates the transformer oil from the air, which slows down the aging of the transformer oil and prolongs the service life of the product.
Beautiful appearance, excellent performance and maintenance-free.

Technical Parameters

Model	Rated capacity (kVA)	Voltage combination			Connection symbol	No- load loss (W)	Load loss (W)	No- load current (%)	Short circuit impedance (%)	Gross weight (kg)	Overall dimensions (mm)			Gauge (mm)
Model	Rated capacity (kVA)	High voltage (kV)	Tap (%)	Low voltage (kV)	Connection symbol	No- load loss (W)	Load loss (W)	No- load current (%)	Short circuit impedance (%)	Gross weight (kg)	Length	Width	Height	Gauge (mm)
S13-M-30/10	30	6 6.3 10 10.5 11	±5 ±2×2.5	0.4	Yyn0 Dyn11	0.10	0.60	0.60	4	300	1050	630	1050	400
S13-M-50/10	50					0.10	0.87	0.60		390	1080	645	1110	400
S13-M-63/10	63					0.15	1.04	0.71		450	1100	650	1165	400
S13-M-80/10	80					0.18	1.25	0.54		540	1120	675	1210	400
S13-M-100/10	100					0.20	1.50	0.48		550	1140	675	1240	400
S13-M-125/10	125					0.24	1.80	0.45		640	1180	690	1240	550
S13-M-160/10	160					0.28	2.20	0.42		810	1230	695	1252	550
S13-M-200/10	200					0.34	2.60	0.39		860	1310	760	1282	550
S13-M-250/10	250					0.40	3.05	0.36		970	1350	775	1312	550
S13-M-315/10	315					0.48	3.65	0.33		1190	1410	790	1367	550
S13-M-400/10	400					0.57	4.35	0.30		1445	1490	860	1437	550
S13-M-500/10	500					0.68	5.15	0.27		1800	1560	880	1472	660
S13-M-630/10	630					0.81	6.20	0.24	4.5	2265	1630	910	1792	660
S13-M-800/10	800					0.98	7.50	0.21		2486	1690	930	1612	820
S13-M-1000/10	1000					1.15	10.30	0.18		3100	1735	945	1732	820
S13-M-1250/10	1250					1.36	12.00	0.18		3275	1775	990	1760	820
S13-M-1600/10	1600					1.64	14.50	0.18		3935	1845	1025	1897	820
S13-M-2000/11	2000					1.99	17.14	0.39		4750	2125	1705	2550	1020
S13-M-2500/12	2500					2.35	20.30	0.30		6200	2390	2390	2650	1020

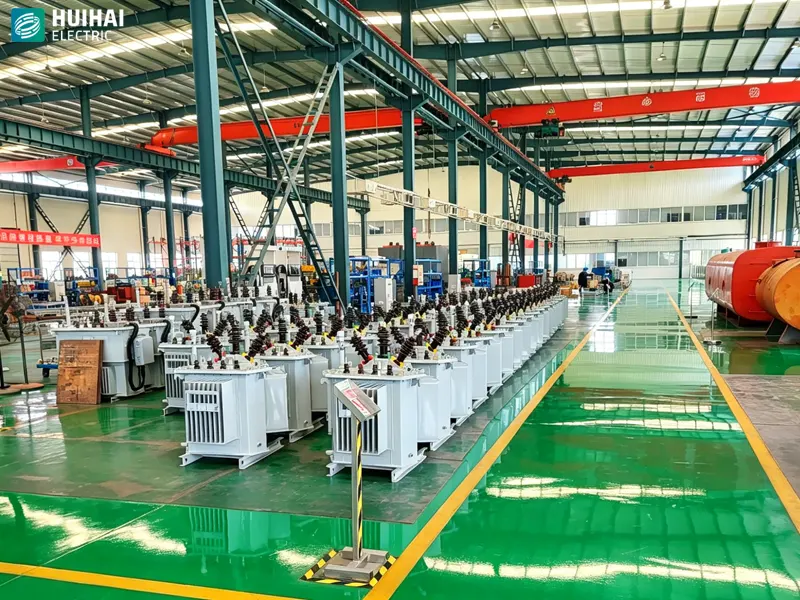

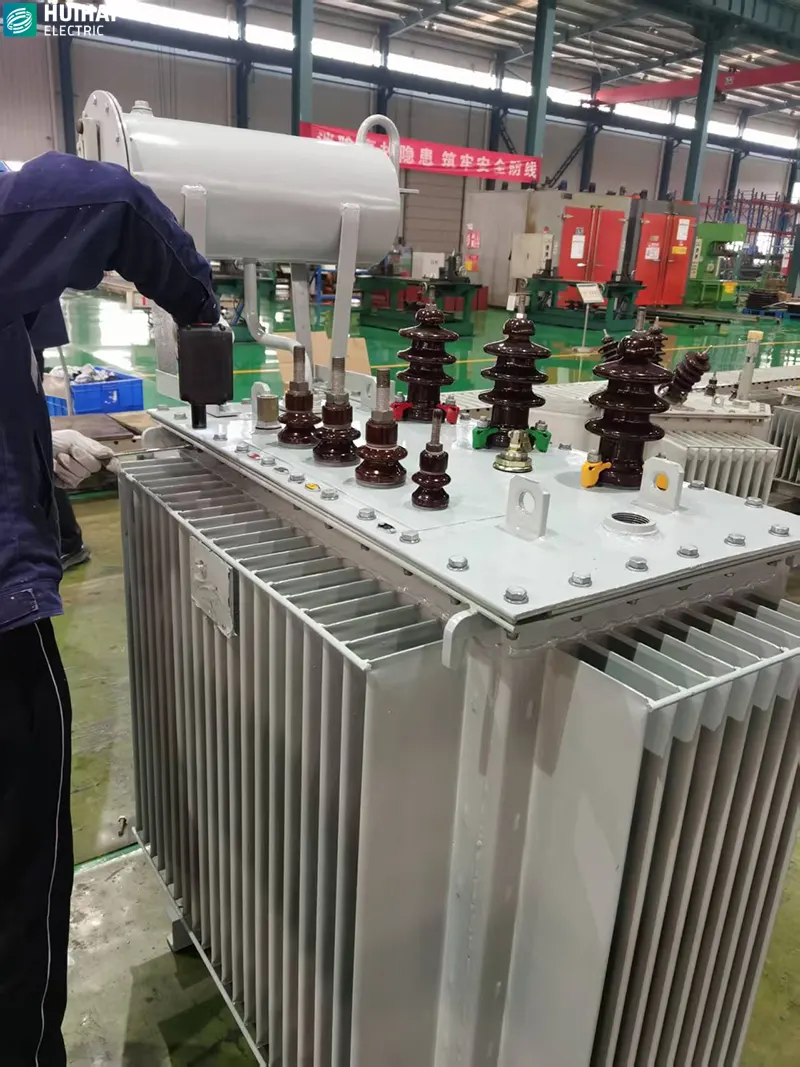

S13-M Planar Transformer Production Workshop

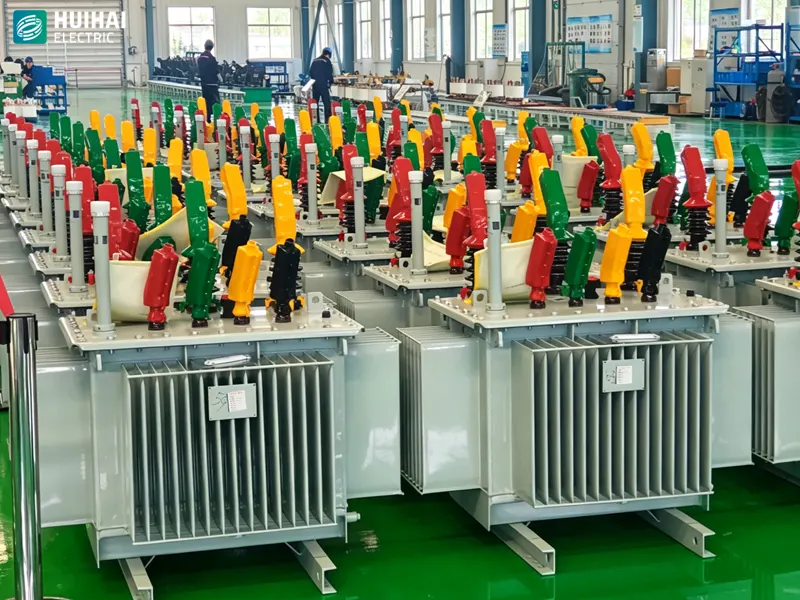

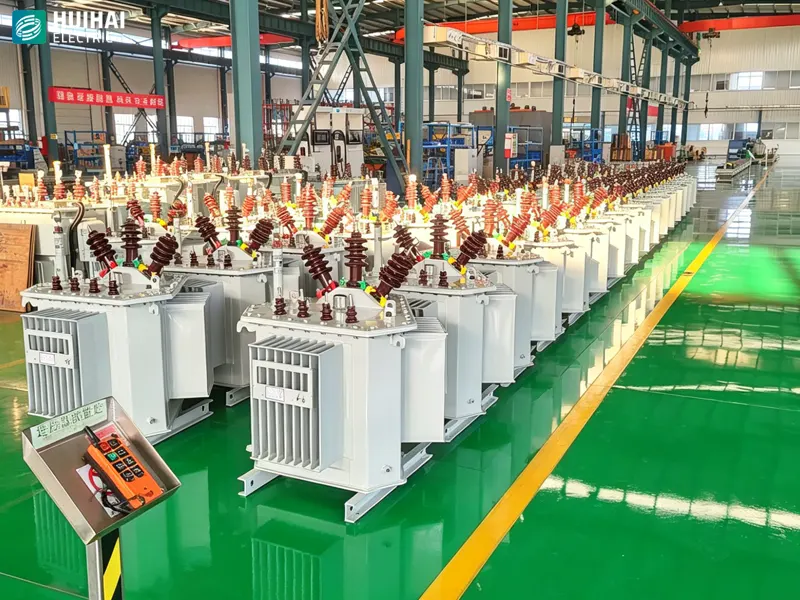

S13-M Planar Transformer Inventory Display Area
