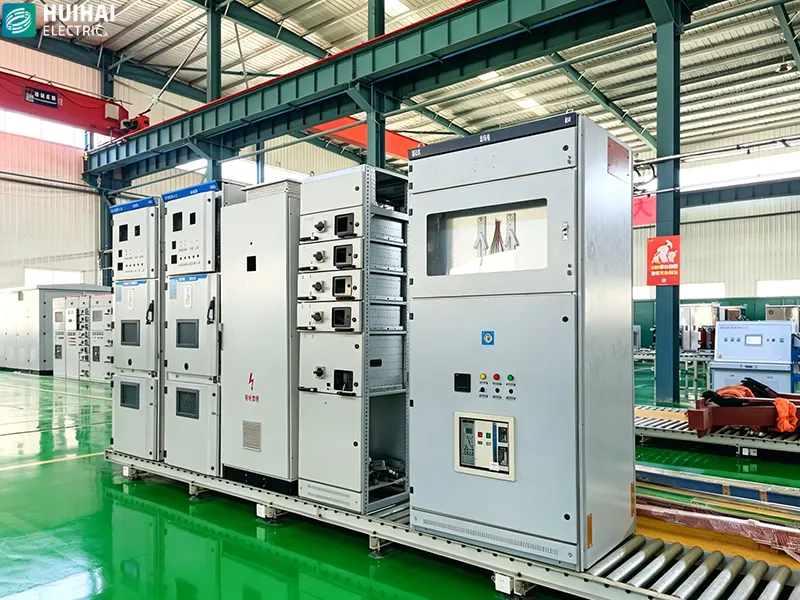

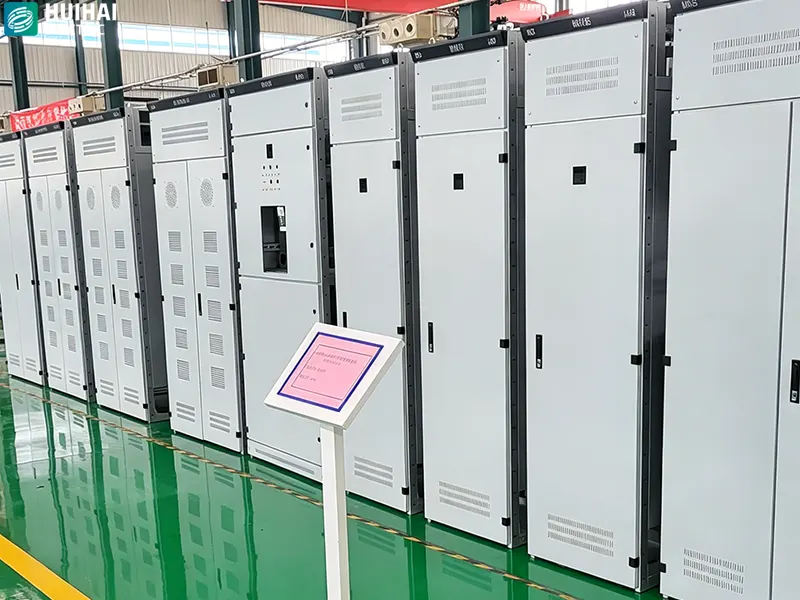

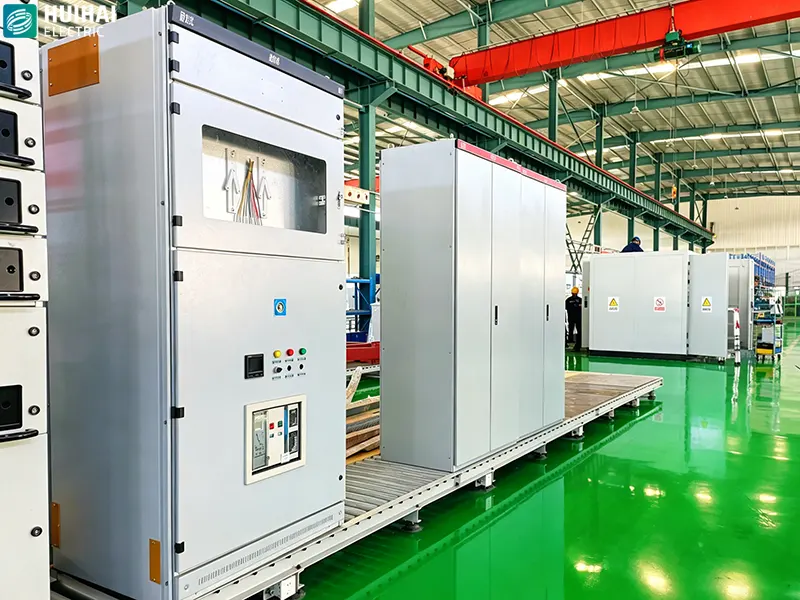

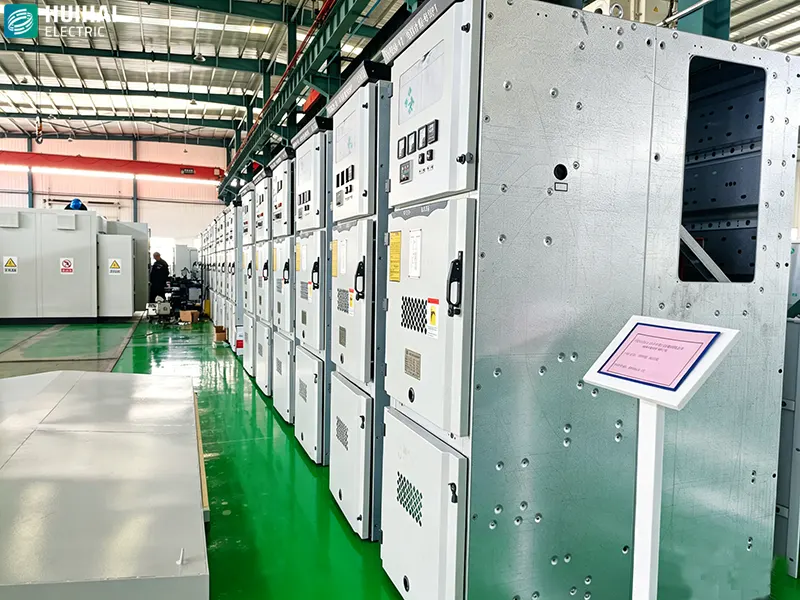

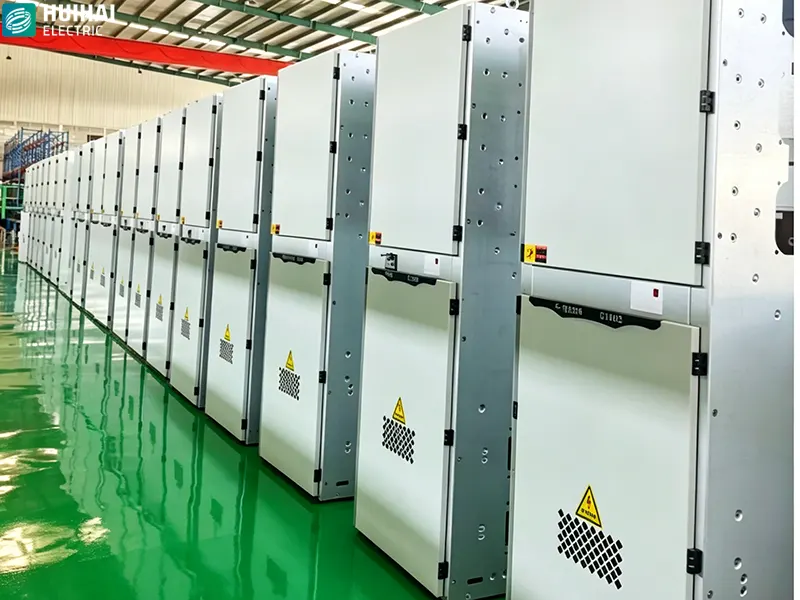

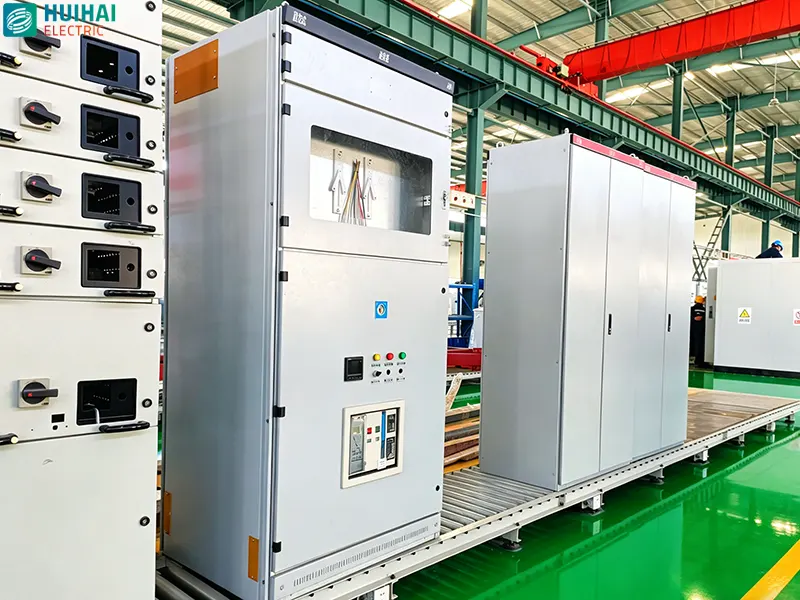

KGN-40.5 Armored Fixed Metal Enclosed Switchgear

Product Overview

KGN-40.5 armored fixed AC metal enclosed switchgear is an indoor complete set of three-phase AC 50Hz single bus system, which is used for receiving and distributing 35kV network electric energy. It is equipped with ZN12-40.5 vacuum circuit breaker with rated voltage of 40.5 kV. It has the functions of controlling, protecting and monitoring the circuit. The cabinet adopts air insulation, which meets the national and international standards, and has a good "five antis" locking function. It is the preferred cabinet type of fixed switchgear today.

Product Characteristics

• Beautiful appearance design, good appearance quality, compact and scientific internal structure and easy maintenance.
• The internal structure is metal spacing insulation structure, and each compartment has an independent pressure relief channel, which is reliable in protection and safe in maintenance.
• It meets the requirements of national standard GB3906-2006 Alternating-current Metal-enclosed Switchgear and Controlgear for Rated Voltages above 3.6 kV and up to and including 40.5 kV and international standard IEC298 AC Metal-enclosed Switchgear and Controlgear for Rated Voltages above 1 kV and up to and including 52 kV.
• The supporting ZN12-40.5 vacuum circuit breaker is a fixed installation, with stable performance, reliable operation, high design parameters and good locking function with switchgear.
• The use of new type of GN27-40.5 series isolating switch and the improved JSXGN-35 mechanical interlocking mechanism and addition of "preventing mislocking circuit breaker program" realize the "five antis" function in the true sense.

Conditions for use

Item		Unit	Parameter
Rated frequency		Hz	50
Rated voltage		kV	40.5
Rated current		A	1600, 2000
Rated insulation level	Power frequency withstand voltage @ 1 min	kV	Interphase, phase to ground
			95
	Lightning impulse withstand kV		185
Auxiliary control loop power frequency		V	2000
Auxiliary control loop rated voltage		V	-48, 110, 220 – 110, 220
Rated breaking current (effective value)		kA	25, 31.5
Rated making current (peak)		kA	63, 80
Rated 4s thermal stable current (peak)		kV	63, 80
Rated 4s thermal stable current (peak)		kV	25, 31.5
Protection grade			IP2X
