Power Transformer

SC(B) H15 Amorphous Alloy Dry-type Transformer

High Voltage(kV)

66.36.61010.51120

Low Voltage(kV)

0.4

Connection Group

DynllYyn0Others

Description

Amorphous alloy transformer SBH15 series

Product Overview

This type of transformer is a new type of low-loss and energy-saving distribution transformer, which combines the technical advantages of low loss of amorphous alloy material with high insulation and mechanical strength and other aspects of traditional epoxy cast dry-type transformer, and is particularly suitable for intermittent operation. The 10kV amorphous alloy dry-type transformer manufactured by the Company has the characteristics of low loss, low noise, low partial discharge, large short-time overload operation ability and strong short-circuit bearing ability, which well solves the fire pressure in the power supply and consumption of enterprises and institutions in urban areas, and can be widely used in high-rise buildings, commercial centers, airports, stations, docks, subways, factories and underground distribution stations.

Product Characteristics

Low energy consumption, adopting isotropic soft magnetic material, low magnetization power, high resistivity and low eddy current loss.
Strong corrosion resistance, amorphous alloy core is fully encapsulated by resin and high temperature resistant silica gel, which effectively prevents corrosion and amorphous alloy fragments from falling off.
Low noise, reasonable working magnetic density is selected during design, and iron core and coil structure are improved during machining.
Strong short circuit resistance, compact and reasonable structure, low temperature rise and long service life.

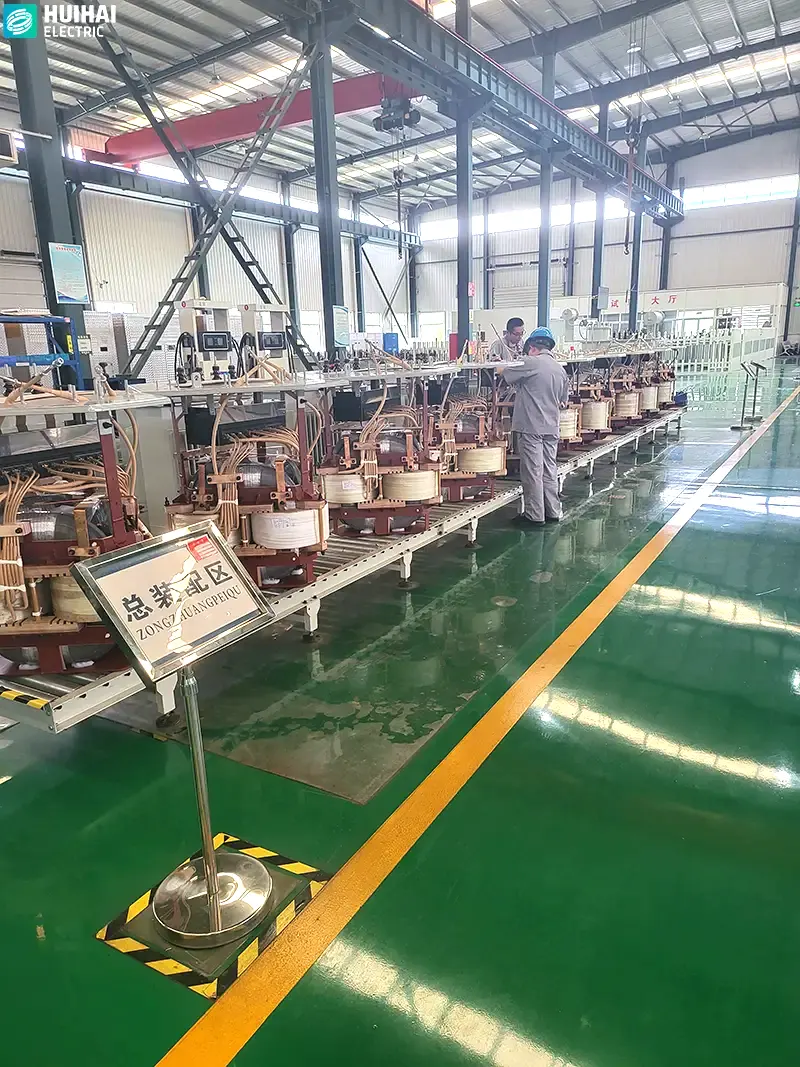

Amorphous alloy transformer assembly work

Technical Parameters

Rated capacity (kVA)	Voltage combination			Connection symbol	No-load loss(W)	Load loss (W)120^oC	Load loss (W)120^oC	Load loss (W)120^oC	No- load current (%)	Short circuit impedance (%)
Rated capacity (kVA)	High voltage (kV)	Tap (%)	Low voltage (kV)	Connection symbol	No-load loss(W)	Load loss (W)120^oC	Load loss (W)120^oC	Load loss (W)120^oC	No- load current (%)	Short circuit impedance (%)
30	6 6.3 6.6 10 10.5 11 20	±5 ±2×2.5% Others	0.4	Yyn0 Dyn11 Others	70	670	710	760	1.6	4
50					90	940	1000	1070	1.4
80					120	1290	1380	1480	1.3
100					130	1480	1570	1690	1.2
125					150	1740	1850	1980	1.1
160					170	2000	2130	2280	1.1
200					200	2370	2530	2710	1.0
250					230	2590	2760	2960	1.0
315					280	3270	3470	3730	0.9
400					310	3750	3990	4280	0.8
500					360	4590	4880	5230	0.8
630					420	5530	5880	6290	0.7
630					410	5610	2960	6400	0.7	6
800					480	6550	6960	7460	0.7
1000					550	7650	8130	8760	0.6
1250					650	9100	9690	10370	0.6
1600					760	11050	11730	12580	0.6
2000					1000	13600	14450	15560	0.5
2500					1200	16150	17170	18450	0.5
1600					760	12250	12960	13900	0.6	8
2000					1000	15020	15960	17110	0.5
2500					1200	17760	18890	20290	0.5

Note:As the products are constantly updated, the above data are for reference only.

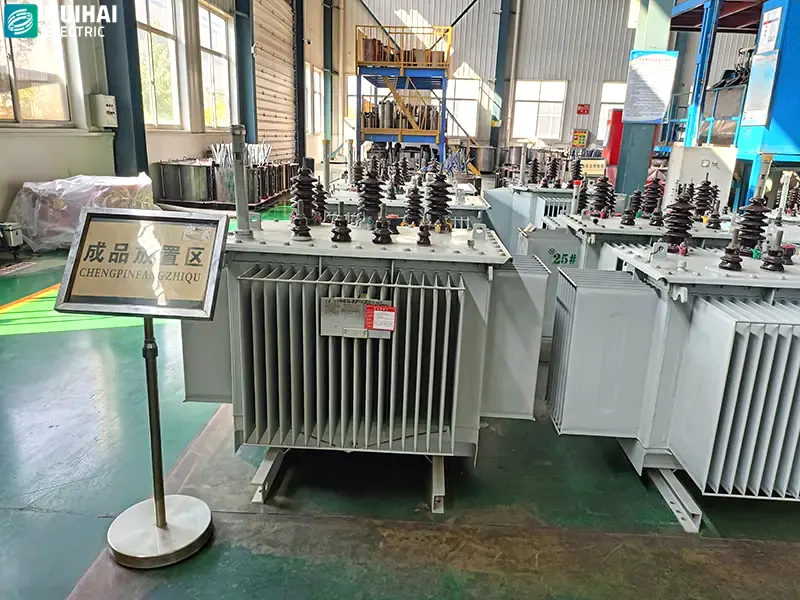

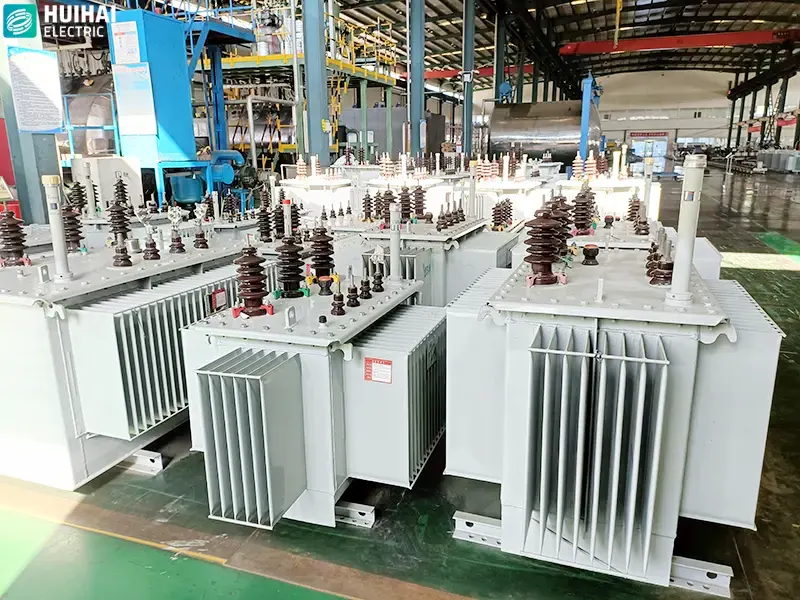

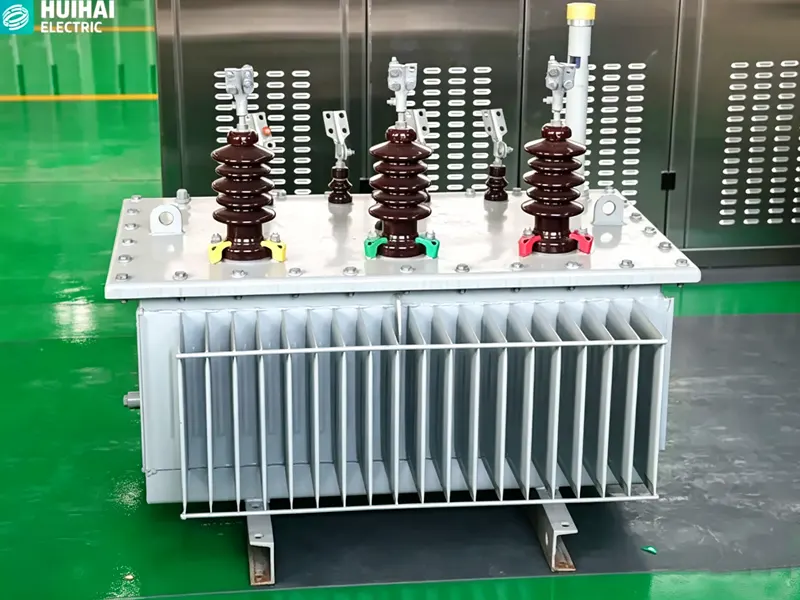

Amorphous alloy transformer SBH15 series inventory display

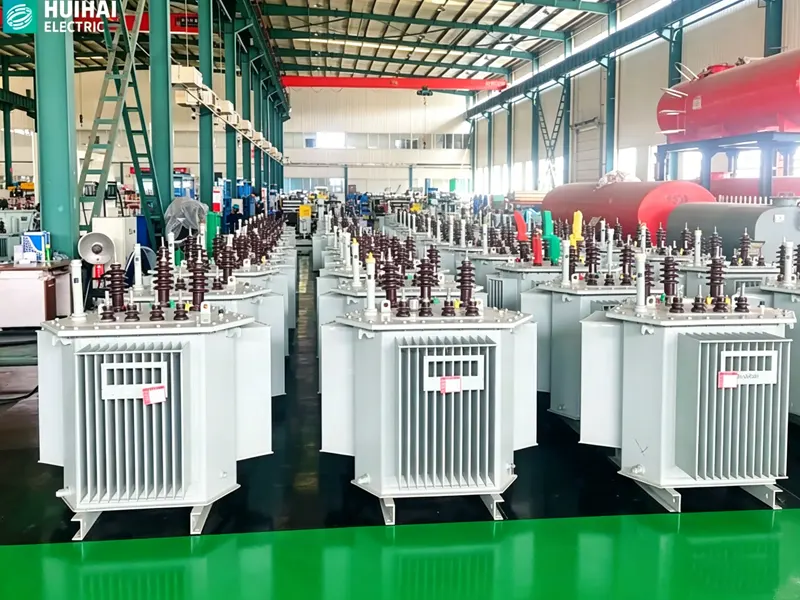

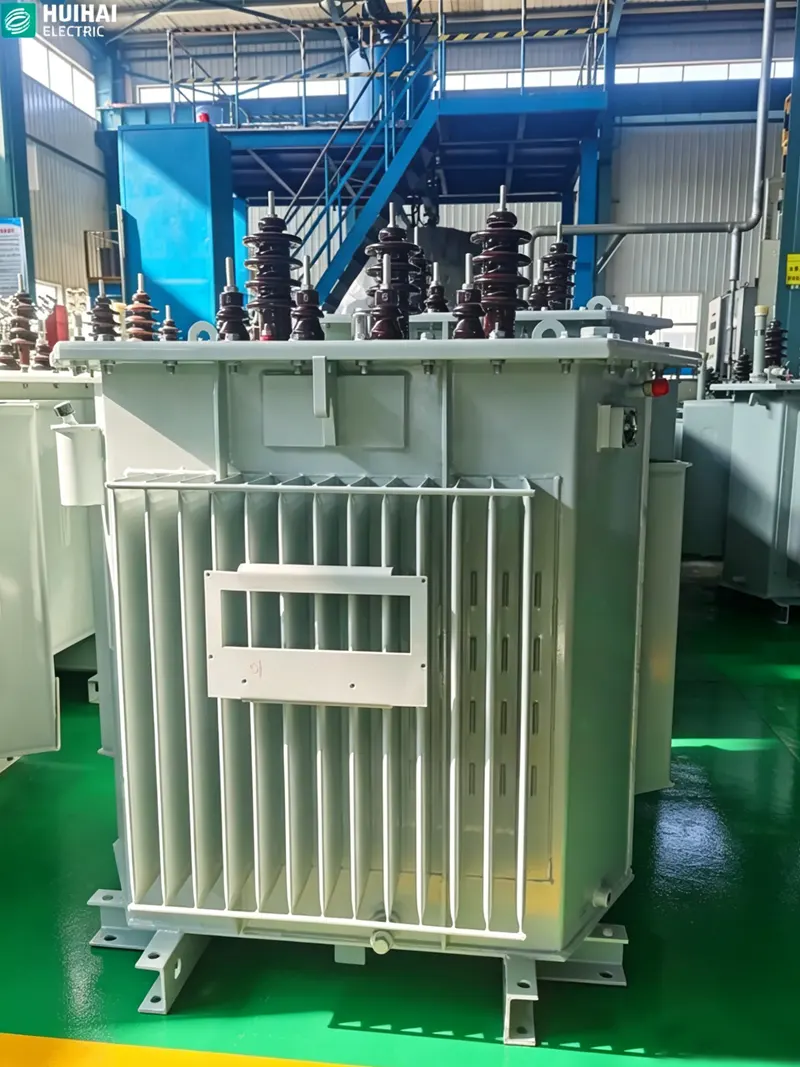

Amorphous alloy transformer inventory display
