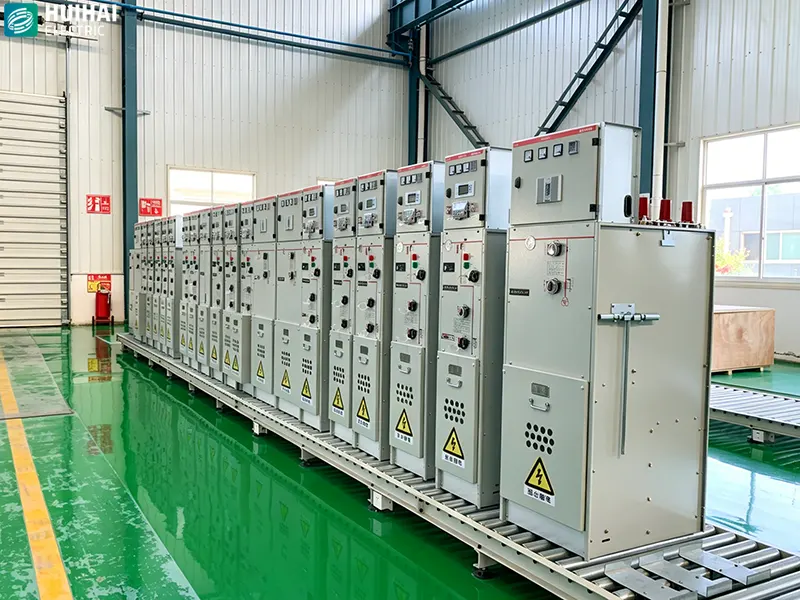

Outdoor Ring Main Unit

Product Overview

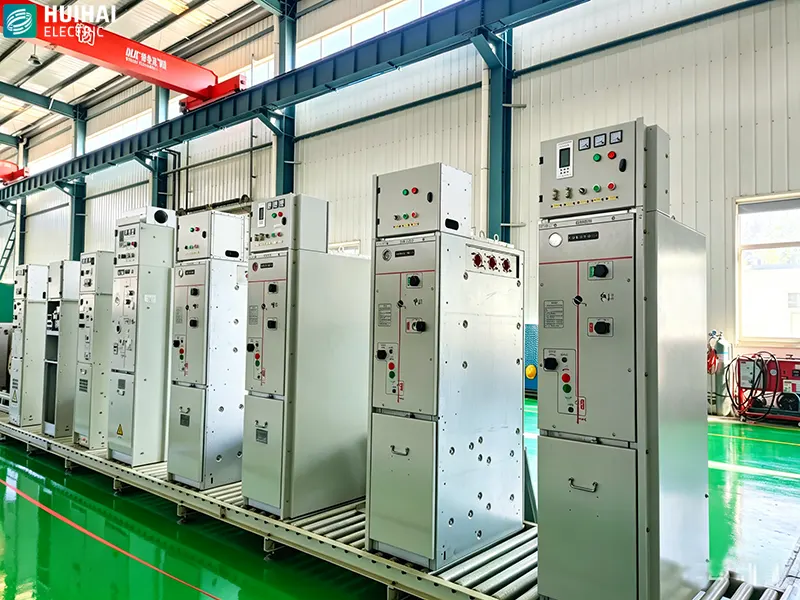

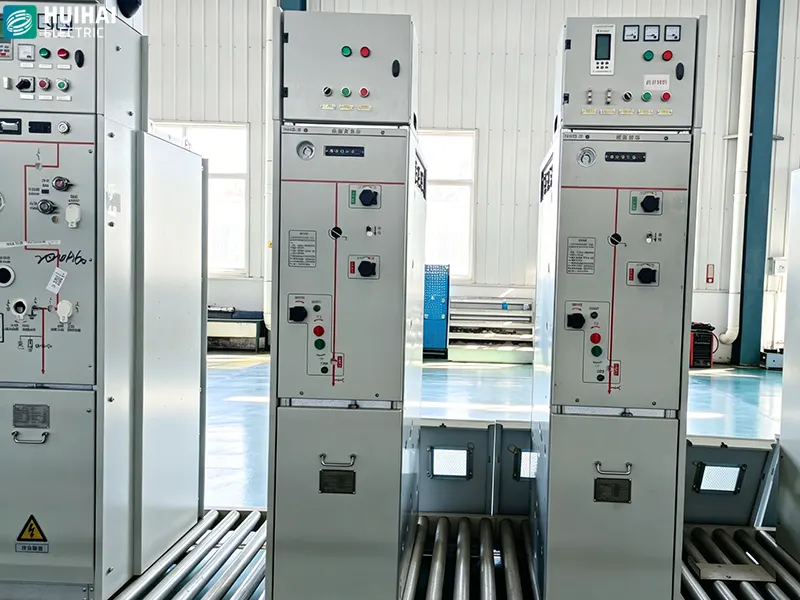

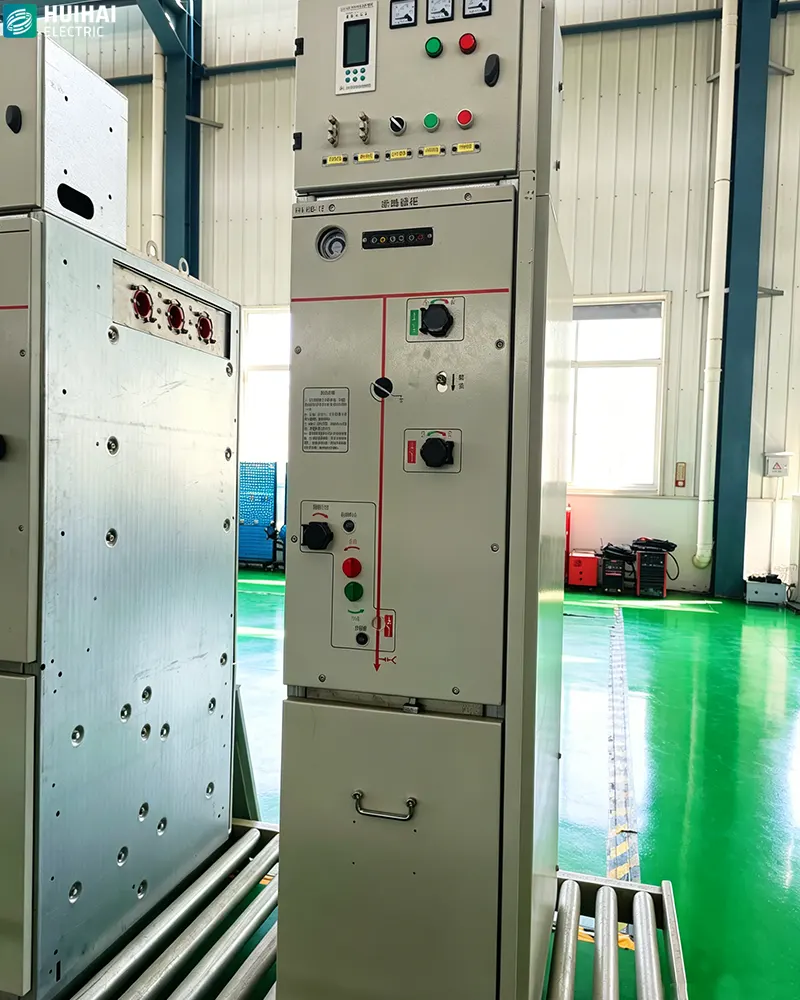

Generally, it is divided into three types: air insulation, solid insulation and SF6 insulation, which are used for opening/closing load current, breaking short circuit current and transformer no-load current, and charging current of overhead lines and cable lines at a certain distance, which plays a role in control and protection, and is an important switching equipment for ring network power supply and terminal power supply. Load switches with air insulation mainly include air generation type, air compression type and vacuum type. The product categories of ring main unit include HK-10, MKH-10, 8DH-10, XGN-15, SM6, and FOX-HD series.

Product Characteristics

• Simple and compact structure, small size and low price.
• Vacuum breaking is used to extinguish arc, with long electrical life.
• Load switch, load switch + fuse and circuit breaker can be selected for protection, which can improve power supply parameters and performance, and make power supply safe and reliable.
• It can be equipped with electric and remote control equipment to realize distribution automation.
• Fully insulated and fully sealed structure, flood-resistance, pollution-proof and maintenance-free.
• The box adopts anti-corrosion design and special paint treatment, which can be widely used in various harsh environments, such as storm and high pollution areas.
• It is widely used in distribution stations and box-type substations in load centers such as urban residential quarters, high-rise buildings, large public buildings, industrial and mining enterprises, etc.
