Power Transformer

SC(B) 10, SC(B) 11 Series 10kV Off-Circuit-Tap-Changing Distribution Transforme

High Voltage(kV)

66.31010.511

Low Voltage(kV)

0.4

Connection Group

DynllYyn0Others

Description

Product Overview

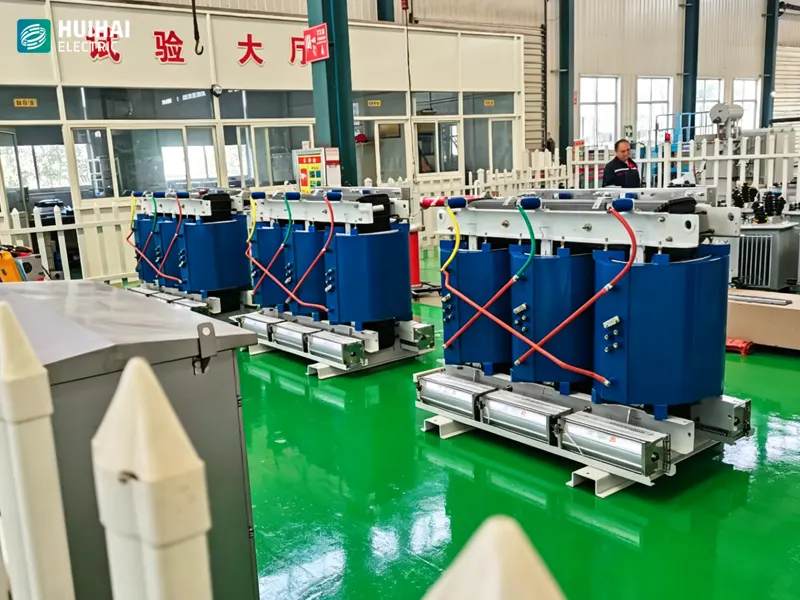

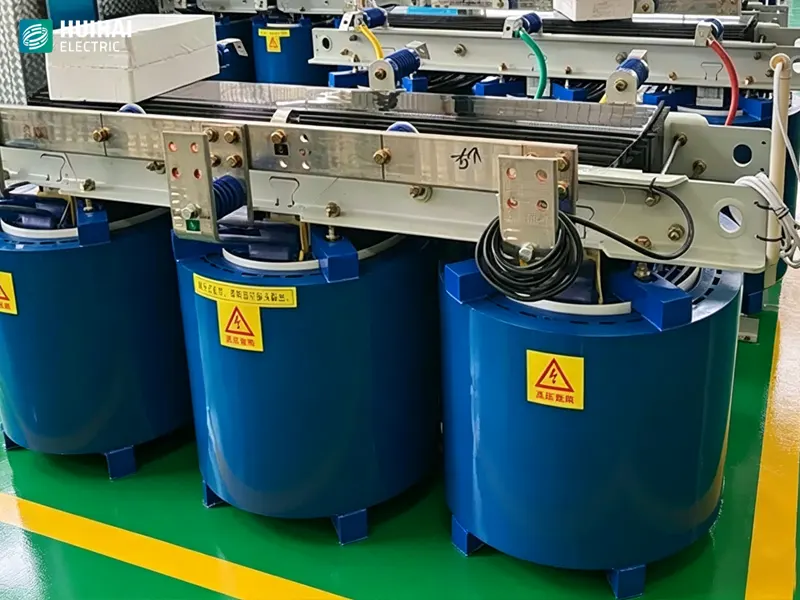

This series of transformers is cast with advanced technology, which has high reliability and long service life. It can be added with protective shell according to different protection levels. It is suitable for high-rise buildings, commercial centers, airports, tunnels, chemical plants, nuclear power plants and other important or special environmental places.

Product Characteristics

Energy saving and low operating cost, which is obviously lower than SC (B) 9.
Low noise and high insulation level.
New technologies, new processes and new materials are applied in the design, which is small in size and light in weight.
Low partial discharge, with partial discharge below 5pc, high product reliability.
Beautiful appearance, adopting vacuum pressure casting with filler resin, high surface finish of coil, coil color being natural color of material. The surface is not sprayed, and primary color is still maintained after the end of service life of the transformer.
Reinforced grid is used inside and outside the coil to make the resin grid and wire firmly become a whole, which has high mechanical strength and strong short-circuit resistance.
It adopts resin with filler, making the felt not easy to fly when winding, with combustion heat, and meets the requirements of environmental protection.

11 Series 10kV Off-Circuit-Tap-Changing Distribution Transforme

Technical Parameters

Model	Rated capacity (kVA)	Voltage combination			Connection symbol	No- load loss (W)	Load loss (W)	No- load current (%)	Noise (dB) A	Short circuit impedance (%)
Model	Rated capacity (kVA)	High voltage (kV)	Tap (%)	Low voltage (kV)	Connection symbol	No- load loss (W)	Load loss (W)	No- load current (%)	Noise (dB) A	Short circuit impedance (%)
SC10-30	306	6 6.3 10 10.5 11	±5 ±2×2.5% Others	0.4	Yyn0 Dyn11 Others	190	710	1.5	45	4
SC10-50	50					270	1000	1.5	45
SC10-80	80					370	1380	1.5	45
SC10-100	100					400	1570	1.0	45
SC10-125	125					470	1840	1.0	45
SC10-160	160					540	2130	1.0	45
SC10-200	200					620	2530	1.0	45
SC10-250	250					720	2750	1.0	45
SC (B) 10-315	315					880	3470	0.8	45
SC (B) 10-400	400					980	3990	0.8	45
SC (B) 10-500	500					1160	4880	0.6	45
SC (B) 10-630	630					1340	5870	0.5	45	6
SC (B) 10-800	800					1520	6950	0.5	50
SC (B) 10-1000	1000					1770	8130	0.5	50
SC (B) 10-1250	1250					2090	9690	0.4	50
SC (B) 10-1600	1600					2450	11730	0.3	50
SC (B) 10-2000	2000					3320	14450	0.3	50
SC (B) 10-2500	2500					4000	17170	0.2	50

SC (B) 10 Type 10kV Distribution Transformer

Rated capacity (kVA)	Voltage combination			Connection symbol	No- load loss (W)	Load loss (W)	No- load current (%)	Short circuit impedance (%)
Rated capacity (kVA)	High voltage (kV)	Tap (%)	Low voltage (kV)	Connection symbol	No- load loss (W)	Load loss (W)	No- load current (%)	Short circuit impedance (%)
50	6 6.3 10 10.5 11	±5 ±2×2.5% Others	0.4	Yyn0 Dyn11	270	870	2	4
80					370	1200	1.6
100					400	1370	1.6
125					470	1610	1.2
160					540	1850	1.2
200					620	2200	1.2
250					720	2400	1.2
315					880	3020	1.0
400					980	3470	1.0
500					1160	4250	1.0
630					1340	5110	0.8	6
800					1520	6050	0.7
1000					1770	7070	0.7
1250					2090	8430	0.7
1600					2450	10210	0.6
2000					2980	12580	0.5
2500					3500	14950	0.5

SC (B) 11 Type 10kV Distribution Transformer

Rated capacity (kVA)	Voltage combination			Connection symbol	No- load loss (W)	Load loss (W)	No- load current (%)	Short circuit impedance (%)
Rated capacity (kVA)	High voltage (kV)	Tap (%)	Low voltage (kV)	Connection symbol	No- load loss (W)	Load loss (W)	No- load current (%)	Short circuit impedance (%)
50	6 6.3 10 10.5 11	±5 ±2×2.5% Others	0.4	Yyn0 Dyn11	240	870	2.5	4
80					330	1200	2.0
100					350	1370	1.8
125					420	1610	1.8
160					480	1850	1.6
200					550	2200	1.6
250					630	2400	1.2
315					770	3020	1.2
400					860	3470	1.0
500					1020	4250	1.0
630					1180	5110	0.8	6
800					1330	6050	0.6
1000					1550	7070	0.6
1250					1830	8430	0.6
1600					2150	10210	0.5
2000					2910	12580	0.4
2500					3480	14950	0.4

Note: As the products are constantly updated, the above data are for reference only.
