Best 5 High Voltage Switchgear Models for Outdoor Power Distribution Systems

Selecting the right high voltage switchgear for an outdoor power distribution system is one of the most consequential engineering decisions in any utility, renewable energy, or industrial infrastructure project. Unlike indoor installations, outdoor switchgear must withstand rain, dust, extreme temperatures, UV exposure, salt spray, and seismic activity—all while maintaining reliable switching and protection performance.

The global high voltage switchgear market was valued at USD 21.9 billion in 2026 and is projected to reach USD 35.7 billion by 2035, expanding at a CAGR of 5.6%. The outdoor high voltage switch device segment alone was estimated at USD 1,621 million in 2025, growing at a CAGR of 5.30%. This growth is driven by grid reinforcement, renewable energy interconnection, and the convergence of switching, protection, and isolation equipment upgrades at substations.

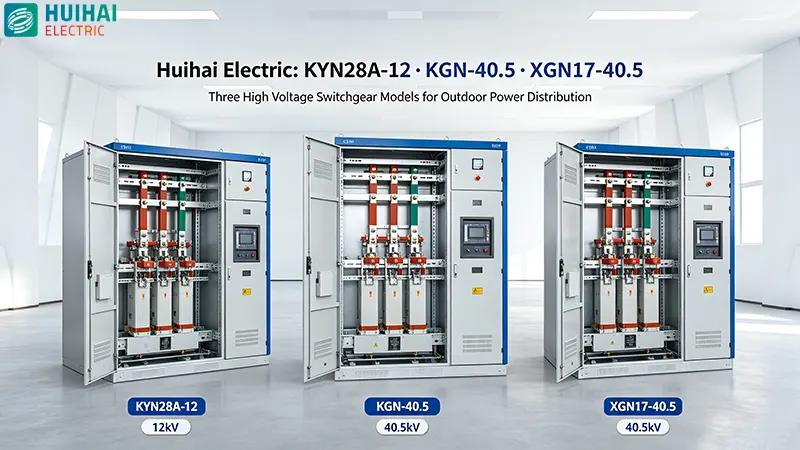

Below, we present the best 5 high voltage switchgear models for outdoor power distribution systems in 2026, featuring three flagship indoor switchgear platforms from Huihai Electric that are engineered for deployment in outdoor enclosures and prefabricated substations, alongside two outdoor-dedicated models for overhead and transmission applications.

1. Huihai Electric KYN28A-12 — Best Indoor Switchgear Platform for Outdoor Prefabricated Substations

The KYN28A-12 (GZS1) is a three-phase AC 50Hz indoor complete set of switchgear designed for rated voltages of 3.6 kV, 7.2 kV, and 12 kV. While classified as an indoor platform, it is extensively deployed in prefabricated substations and containerized power distribution enclosures that protect the switchgear from outdoor elements—a configuration that has become standard practice for utility and industrial projects worldwide.

Key Technical Features

• Removable Handcart Design: The circuit breaker is mounted on a removable handcart, enabling rapid replacement and maintenance without extended downtime
• Full Armored Construction: The cabinet is divided into four independent compartments—handcart room, busbar room, cable room, and relay/instrument room—each with independent grounding and IP2X protection between compartments
• Five-Prevention Interlocking: Mechanical interlocks prevent erroneous circuit breaker operation, load-breaking of disconnectors, live grounding, grounding-switch energization, and entry into live compartments
• Flexible Breaker Compatibility: Compatible with domestic VS1/VY4 vacuum circuit breakers or ABB VD4 models

Technical Specifications

Rated Voltage:	3.6 kV, 7.2 kV, 12 kV
Rated Frequency:	50 Hz
Rated Current:	630–4,000 A (up to 5,000 A optional)
Rated Short-Time Withstand Current (4s):	16–40 kA
Rated Peak Withstand Current:	40–100 kA
Rated Short-Circuit Breaking Current:	16–40 kA
Enclosure Protection:	IP4X (enclosure); IP2X (between compartments)

Why It Stands Out

The KYN28A-12 is the workhorse medium-voltage switchgear for prefabricated substation applications. When installed inside Huihai Electric's prefabricated substation enclosures—which provide IP54+ weather protection—it delivers reliable medium-voltage distribution in outdoor environments ranging from industrial parks to renewable energy collector stations. The removable handcart design is particularly valuable in remote outdoor installations where rapid maintenance is critical.

2. Huihai Electric KGN-40.5 — Best Fixed-Type Switchgear for Heavy-Duty Outdoor Substations

Voltage Class: 40.5 kV
Type: Armored Fixed AC Metal-Enclosed Switchgear (Indoor Platform)
Best For: 35 kV network distribution in large outdoor substations, industrial facilities, and power plants

The KGN-40.5 is a three-phase AC 50Hz single-bus indoor complete set of switchgear designed for receiving and distributing 35 kV network electric energy. Equipped with the ZN12-40.5 vacuum circuit breaker rated at 40.5 kV, it provides controlling, protecting, and monitoring functions with exceptional reliability in demanding industrial environments.

Key Technical Features

• Fixed Installation with ZN12-40.5 Breaker: The vacuum circuit breaker is fixed-mounted with stable performance, reliable operation, and high design parameters—ideal for applications where breaker exchange frequency is low but reliability demands are extreme
• Metal-Spaced Insulation Structure: Each compartment features independent pressure relief channels for reliable protection and safe maintenance
• Five-Prevention Interlocking: New GN27-40.5 series isolating switch and improved JSXGN-35 mechanical interlocking mechanism with "prevent erroneous circuit breaker locking" program deliver true five-prevention functionality

Technical Specifications

Rated Voltage:	40.5 kV
Rated Frequency:	50 Hz
Rated Current:	1,250 / 1,600 / 2,000 A
Power Frequency Withstand Voltage (1 min):	95 kV
Lightning Impulse Withstand Voltage (Peak):	185 kV
Rated Breaking Current (RMS):	25 / 31.5 kA
Rated Short-Circuit Making Current (Peak):	63 / 80 kA
Rated 4s Thermal Stable Current:	25 / 31.5 kA
Protection Grade:	IP2X
Dimensions (W×D×H):	1,818 × 3,100 × 3,200 mm

Why It Stands Out

The KGN-40.5 is the preferred fixed-type switchgear for heavy industrial and utility substations where maximum reliability and safety are paramount. Its metal-spaced insulation structure ensures that any internal arc fault is contained within its compartment, protecting adjacent equipment and personnel. When deployed in outdoor substations via weatherproof enclosures or prefabricated substation buildings, it delivers the robustness required for 35 kV network distribution in mining, petrochemical, and large manufacturing facilities.

3. Huihai Electric XGN17-40.5 — Best Box-Type Switchgear for Compact Outdoor Distribution

Voltage Class: 40.5 kV
Type: Box-Type Fixed AC Metal-Enclosed Switchgear (Indoor Platform)
Best For: Compact outdoor distribution stations, remote industrial sites, and renewable energy collector substations

The XGN17-40.5 is a box-type fixed AC metal-enclosed switchgear designed per GB3906-2006 standards for three-phase AC 50Hz single-bus systems with rated voltage of 40.5 kV. It is used for receiving and distributing 35 kV network electric energy, with control, protection, and monitoring functions.

Key Technical Features

• Welded Steel Frame Construction: The cabinet body is constructed from section steel and steel plate welded parts, providing superior vibration resistance for transportation over poor roads and remote site access
• Air Insulation with Compartmentalized Design: Divided into circuit breaker room, busbar room, cable room, and instrument room, with high-quality thin steel plate separators
• Single Busbar with Bypass Option: Supports both single busbar and single busbar with bypass configurations, enabling uninterrupted power supply during maintenance
• Handcart/Dolly Operation: Supports manual/electric operation and remote control for flexible operational modes

Technical Specifications

Rated Voltage:	40.5 kV (35 kV system)
Rated Frequency:	50 Hz
Rated Current (Main Busbar):	1,250 / 1,600 / 2,000 A
Power Frequency Withstand Voltage (1 min):	95 kV
Lightning Impulse Withstand Voltage (Peak):	185 kV
Rated Short-Circuit Breaking Current:	20 / 25 / 31.5 kA
Rated Short-Circuit Making Current (Peak):	50 / 63 / 80 kA
Rated 4s Thermal Stable Current:	20 / 25 / 31.5 kA
Protection Grade:	IP2X
Dimensions (W×D×H):	1,818 × 2,960 (3,860) × 3,650 mm

Why It Stands Out

The XGN17-40.5 fills a critical niche: compact, rugged 35 kV switchgear for remote outdoor distribution applications. Its welded steel frame construction withstands the vibration and mechanical stress of long-distance transportation to remote sites—a common challenge for mining operations, rural electrification, and renewable energy projects in developing regions. When housed in Huihai Electric's outdoor enclosures, it delivers reliable 35 kV distribution in the harshest environments.

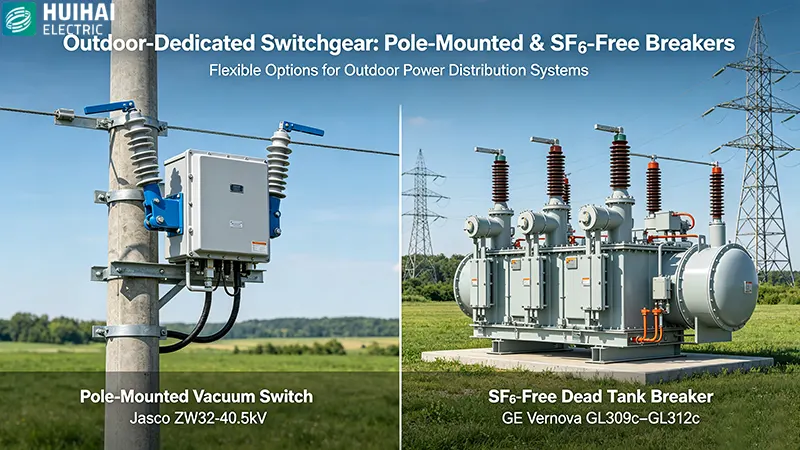

4. Jasco ZW32-40.5kV — Best Pole-Mounted Vacuum Switch for Overhead Distribution

Voltage Class: Up to 40.5 kV
Type: Pole-Mounted Vacuum Switch-Disconnector (Outdoor-Dedicated)
Best For: Utility distribution networks, renewable power plants, and rural electrification projects

The ZW32-40.5kV is a rugged, pole-mounted vacuum switch-disconnector designed from the ground up for outdoor applications. Part of Jasco Electric's expanded portfolio, it targets rising demand in Asia and Africa's rapidly expanding power infrastructure.

Key Technical Features

• Rated up to 40.5 kV: Fully compliant with 36 kV system requirements
• Hot-Dip Galvanized Construction: Superior corrosion resistance, tested to withstand tropical climates, high humidity, and salt-laden coastal air
• Smart-Ready Design: Optional remote monitoring and control integration
• Application Flexibility: Suitable for 12 kV, 24 kV, and 40.5 kV pole-mounted solutions for overhead line protection, renewable power plants, and rural electrification

5. GE Vernova GL309c–GL312c — Best SF₆-Free Dead Tank Breaker for Outdoor Substations

Voltage Class: 72.5 kV – 145 kV
Type: SF₆-Free Dead Tank Circuit Breaker (Outdoor-Dedicated)
Best For: Sub-transmission and distribution substations requiring compact, eco-friendly protection

The GL309c–GL312c range extends GE Vernova's SF₆-free technology to the 72.5 kV–145 kV voltage class—the workhorse range for sub-transmission and distribution substations.

Key Technical Features

• SF₆-Free Technology: Part of the GRiDEA™ portfolio, delivering significant carbon footprint reduction over the product lifecycle
• Outdoor-Optimized: Engineered for reliable operation in outdoor environments
• Proven Platform: Built on GE Vernova's decade of SF₆-free technology experience

Comparison Table: The Best 5 Models at a Glance

Model	Voltage Class	Type	Outdoor Deployment	Best Application
Huihai KYN28A-12	12 kV	Armored Removable (Indoor)	Prefabricated substation enclosure	MV distribution, industrial parks
Huihai KGN-40.5	40.5 kV	Armored Fixed (Indoor)	Weatherproof substation building	Heavy-duty 35 kV distribution
Huihai XGN17-40.5	40.5 kV	Box-Type Fixed (Indoor)	Compact outdoor enclosure	Remote distribution, renewables
Jasco ZW32-40.5kV	Up to 40.5 kV	Pole-Mounted Vacuum Switch	Direct outdoor mount	Overhead distribution
GE Vernova GL309c–GL312c	72.5–145 kV	SF6-Free Dead Tank Breaker	Direct outdoor installation	Sub-transmission substations

Key Selection Criteria for Outdoor Switchgear

1. Voltage Class and System Requirements

Match switchgear rated voltage to your system's maximum operating voltage. Outdoor switchgear spans from 12 kV pole-mounted units to 145 kV dead tank breakers.

2. Environmental Protection Rating

Outdoor switchgear must independently withstand harsh environments:

• IP Rating: IP54+ minimum for rain and dust; IP65 for coastal or high-exposure areas
• Corrosion Resistance: Hot-dip galvanized components or composite insulators for salt spray
• Temperature Range: Verify operation at your site's minimum and maximum temperatures
• Seismic Withstand: Critical for installations in active seismic zones

3. Indoor Platform vs. Outdoor-Dedicated Equipment

Huihai Electric's KYN28A-12, KGN-40.5, and XGN17-40.5 are indoor switchgear platforms that require appropriate protection when deployed outdoors. They are ideally suited for:

• Prefabricated substation enclosures with IP54+ weatherproofing
• Containerized power distribution units for remote sites
• Weatherproof substation buildings at industrial and utility facilities

For applications requiring direct outdoor mounting without enclosures, outdoor-dedicated equipment such as pole-mounted vacuum switches or SF₆-free dead tank breakers should be specified.

4. Standards Compliance

Ensure switchgear complies with applicable international standards:

• IEC 62271 series (High-voltage switchgear and controlgear)
• IEEE C37 series (North American switchgear standards)
• GB/T 1984 (Chinese standard for high-voltage AC circuit breakers)

Why Huihai Electric for Your Outdoor Switchgear Needs

At Huihai Electric, we understand that outdoor power distribution systems demand equipment engineered for the harshest conditions. Our high voltage switchgear portfolio includes:

• KYN28A-12: Removable handcart switchgear for 12 kV prefabricated substation applications
• KGN-40.5: Fixed-type armored switchgear with ZN12-40.5 breaker for 35 kV heavy-duty distribution
• XGN17-40.5: Box-type fixed switchgear for compact outdoor distribution stations
• Prefabricated Substation Enclosures: IP54+ weatherproof enclosures that enable indoor switchgear platforms to operate reliably in outdoor environments
• Full Standards Compliance: IEC 62271, IEEE C37, and GB3906 certified with complete type test reports

Whether you are deploying switchgear for a utility substation, a solar or wind farm, an industrial facility, or a rural electrification project, Huihai Electric delivers reliable, high-performance switchgear solutions—engineered for the challenges of 2026 and beyond.
