Power Transformer

S11-type 10KV Off-Circuit-Tap-Changing Transformer

High Voltage(kV)

66.31010.511

Low Voltage(kV)

33.156.3

Connection Group

Yd11

Description

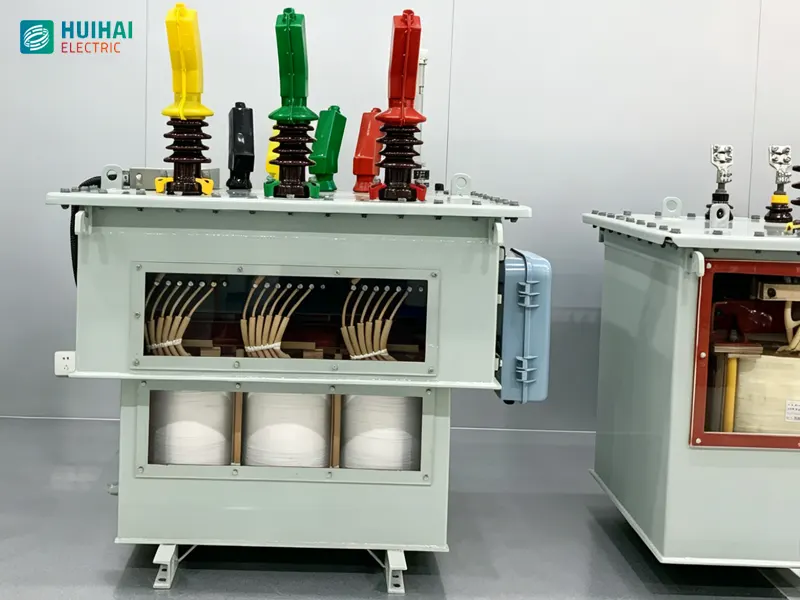

On-Load Tap-Changing Laminated Core Transformer

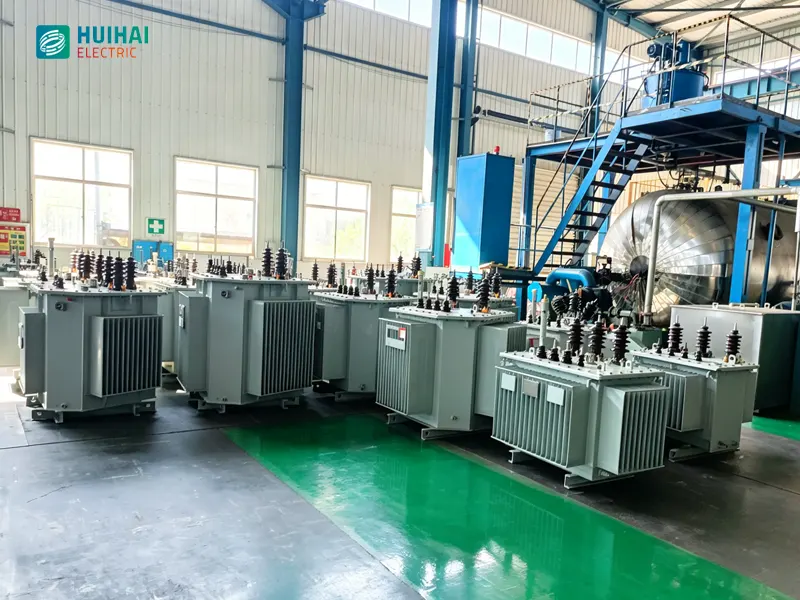

S11 Series On-Load Tap-Changing Laminated Core Transformer

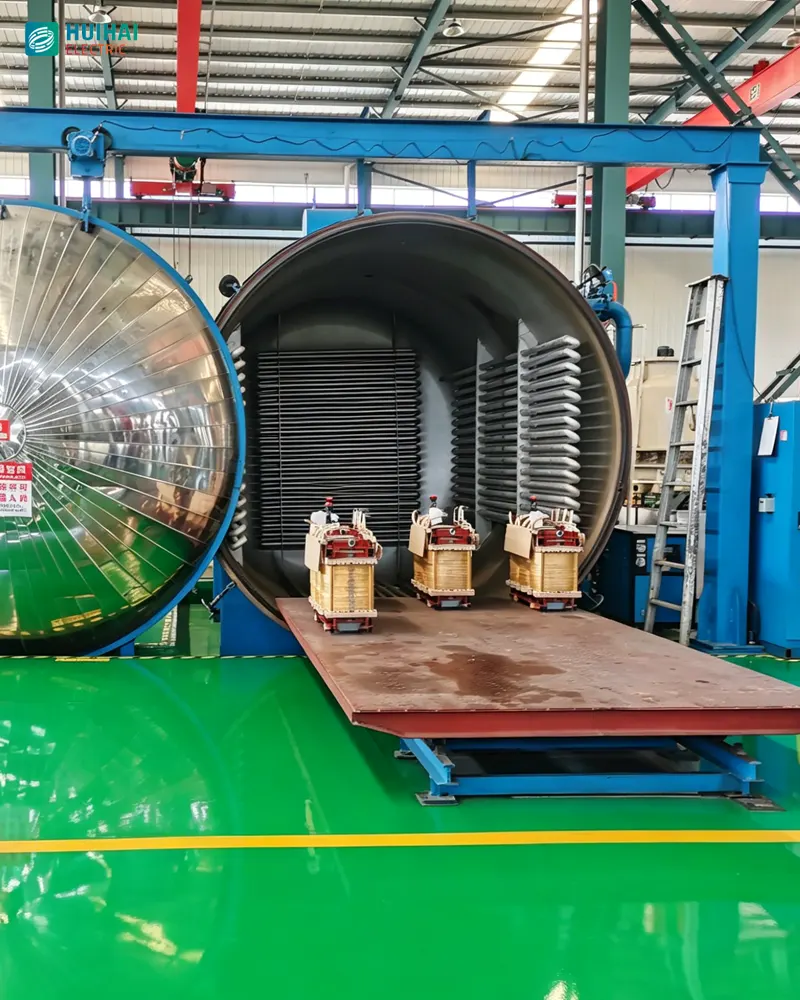

Product Overview

The oil tank adopts corrugated plate or expansion radiator oil tank, which does not need oil storage tank, thus reducing the height of transformer; the transformer oil does not contact with air, which prolongs the aging time of oil, and further prolongs the service life of transformer. The iron core is made of high-quality cold-rolled silicon steel sheet, adopting a fully mitered and perforation-free structure. The coil is made of high quality oxygen-free copper. Three-phase is fully sealed, and the performance conforms to GB1094 Power Transformer and GB/T6451-2008 Specification and Technical Requirements for Oil-immersed Power Transformers. It is widely used in transmission and distribution of urban and rural industrial and agricultural power grids.

Product Characteristics

Stable operation and high reliability.
Advanced performance level and reasonable economic index.
High production standard and wide application range.
Various forms of oil tank, beautiful and generous.

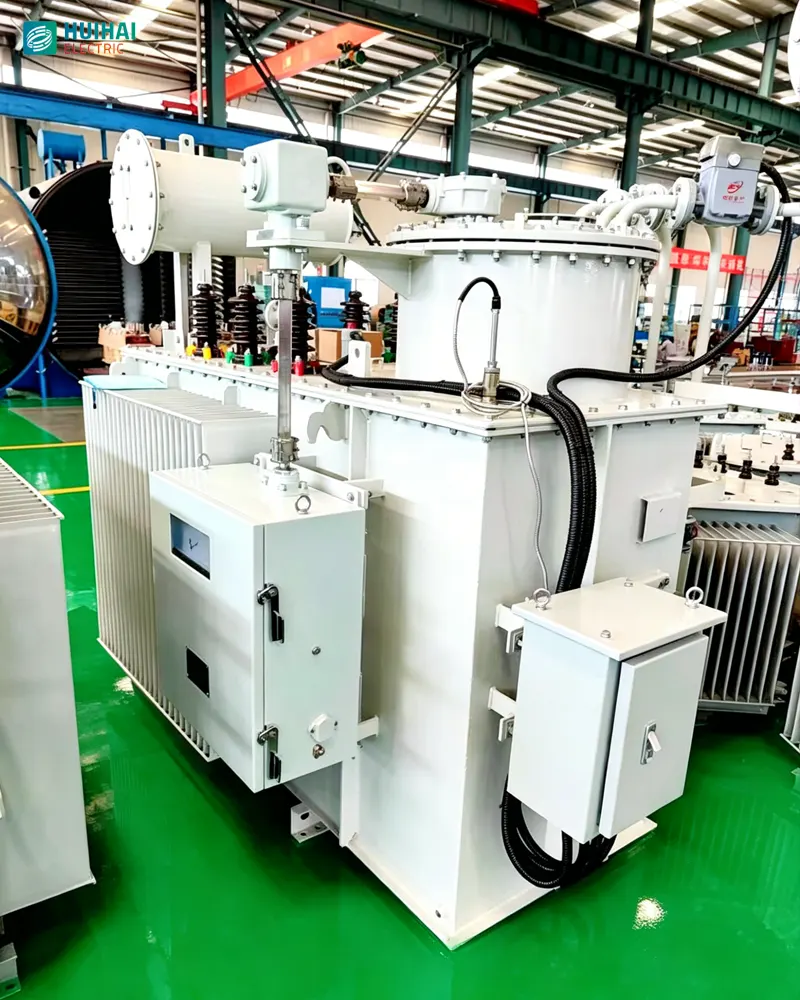

S11 Series On-Load Tap-Changing Transformers

Technical Parameters

Rated capacity (kVA)	Voltage combination			Connection symbol	No- load loss (W)	Load loss (W)	No- load current (%)	Short circuit impedance (%)	Weight(kg)			Overall dimensions (mm)			Gauge (mm)
Rated capacity (kVA)	High voltage (kV)	Tap (%)	Low voltage (kV)	Connection symbol	No- load loss (W)	Load loss (W)	No- load current (%)	Short circuit impedance (%)	Body weight	Oil weight	Gross weight	Length	Width	Height	Gauge (mm)
630	6 6.3 10 10.5 11	±5	3 3.15 6.3	Yd11	0.93	6.92	1.10	4.5	1300	490	2480	1980	1180	1805	820
800					1.13	8.46	1.02	5.5	1450	520	2670	2040	1275	1855
1000					1.33	9.92	0.93		1720	590	2995	2150	1350	1965
1250					1.58	11.80	0.85		2100	645	3540	2080	1420	2190
1600					1.90	14.11	0.76		2510	930	4475	2125	1533	2280
2000					2.27	16.83	0.76		3170	1105	5820	2560	2170	2470	1070
2500					2.67	19.66	0.68		3720	1295	6350	2670	2195	2590
3150					3.16	23.09	0.68		4355	1370	7285	2490	2340	2660
4000	10 10.5 11		6.15 6.3		3.89	27.36	0.59		\| 5155	1750	8682	2480	2970	2400
5000					4.62	33.38	0.59		6050	2150	10760	2935	3175	2980
6300					5.51	35.06	0.51		7010	2580	12790	3250	3445	3150

Note: Gauge can be provided according to user's requirements.

The above data are for reference of model selection. We reserve the right to modify the data.
